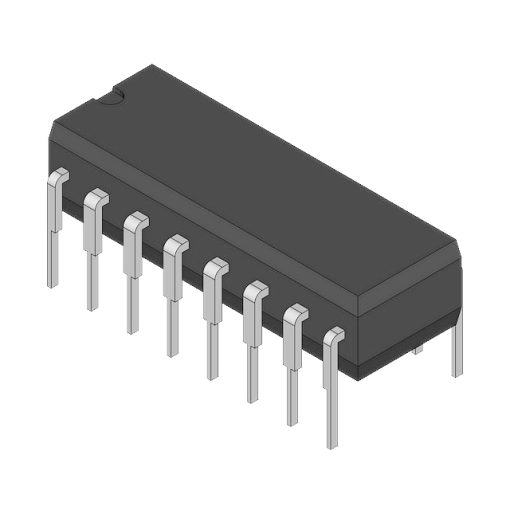

SN75175 Quad Differential EIA 422A/423A Line Receiver DIP IC
The SN75175 is a robust quadruple differential line receiver designed for reliable data transmission in noisy environments. This monolithic integrated circuit features four independent receivers with 3-state outputs, making it ideal for multipoint bus transmission applications.
Features
- Quadruple Differential Line Receivers
- 3-State Outputs
- High Input Impedance
- Wide Common-Mode Input Voltage Range
- High Noise Immunity
- Single 5-V Supply
- Industry Standards Compliance
- High-Speed Operation
- Low Power Consumption
Specifications
| Parameter | Value |
|---|---|
| Supply Voltage (VCC) | 4.75 V to 5.25 V |
| Operating Free-Air Temperature | 0°C to 70°C |
| Common-Mode Input Voltage Range | -12 V to 12 V |
| Differential Input Voltage | ±12 V |
| High-Level Enable-Input Voltage (VIH) | 2 V (min) |
| Low-Level Enable-Input Voltage (VIL) | 0.8 V (max) |
| High-Level Output Current (IOH) | -400 µA |
| Low-Level Output Current (IOL) | 16 mA |
| Data Rate | Up to 10 Mbps |
Applications
- Industrial Automation
- Factory and Process Control
- Building Automation
- Motor Drives
- Multipoint Data Transmission Systems
