SN75189N Receivers 0/4 RS232 IC
These devices are monolithic low-power Schottky quadruple line receivers designed to satisfy the requirements of the standard interface between data-terminal equipment and data-communication equipment as defined by TIA/EIA-232-F. A separate response-control (CONT) terminal is provided for each receiver. A resistor or a resistor and bias-voltage source can be connected between this terminal and ground to shift the input threshold levels. An external capacitor can be connected between this terminal and the ground to provide input noise filtering.
The MC1489, MC1489A, SN75189, and SN75189A are characterized for operation from 0°C to 70°C.
Features:
- Input Resistance…3 kΩ to 7 kΩ
- Input Signal Range…±30 V
- Operate From Single 5-V Supply
- Built-In Input Hysteresis (Double Thresholds)
- Response Control that Provides:
- Input Threshold Shifting
- Input Noise Filtering
- Meet or Exceed the Requirements of TIA/EIA-232-F and ITU Recommendation V.28
Specifications
| Product Attribute | Attribute Value |
| Product Category: | RS-232 Interface IC |

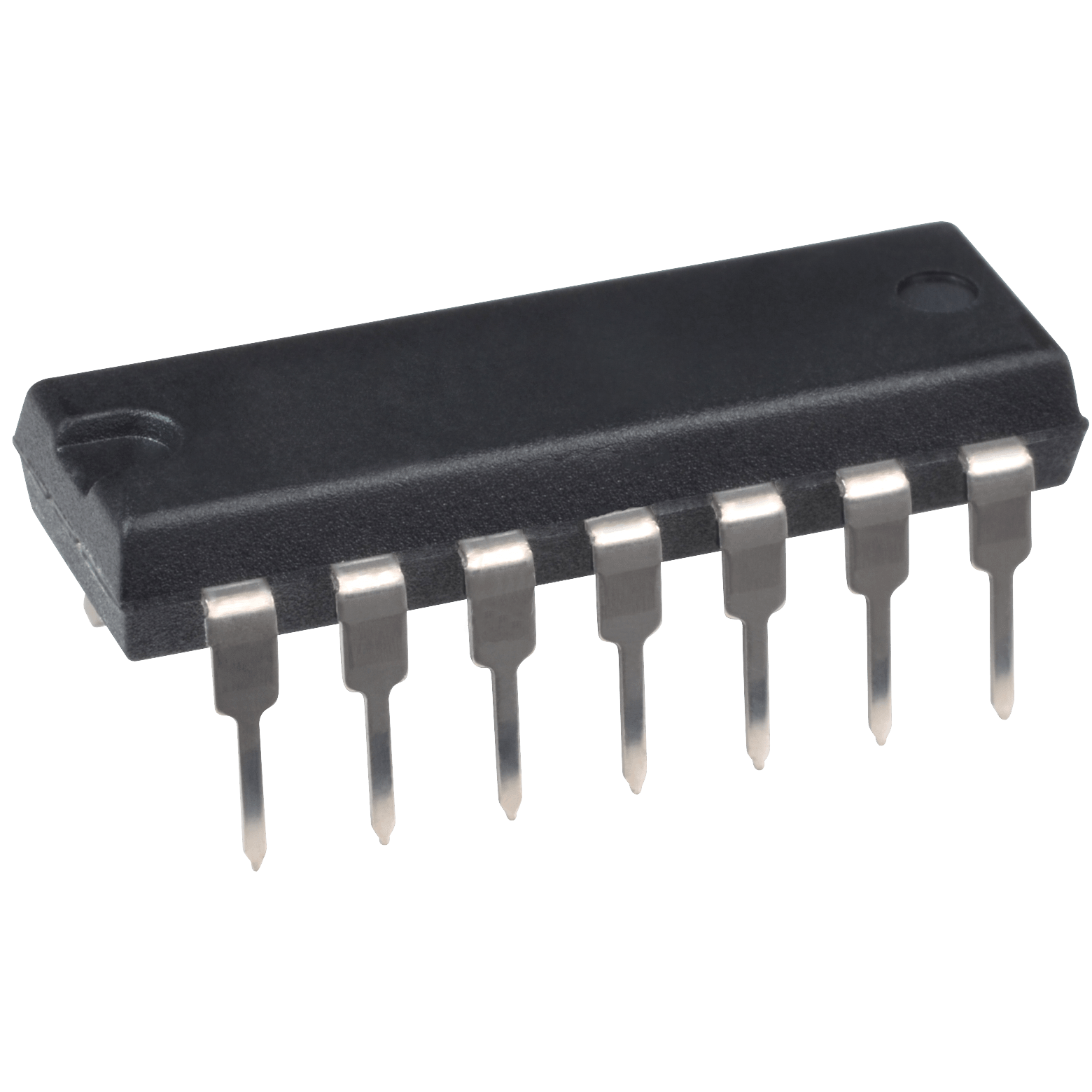

| Package/Case: | PDIP-14 |
| Function: | Receiver |
| Data Rate: | 1 Mb/s |
| Number of Drivers: | 0 Driver |
| Number of Receivers: | 4 Receiver |
| Supply Voltage – Max: | 5 V |
| Supply Voltage – Min: | 5 V |
| Operating Supply Current: | 26 mA |
| Minimum Operating Temperature: | 0 C |
| Maximum Operating Temperature: | + 70 C |
| ESD Protection: | Without ESD Protection |
| Operating Supply Voltage: | 5 V |
