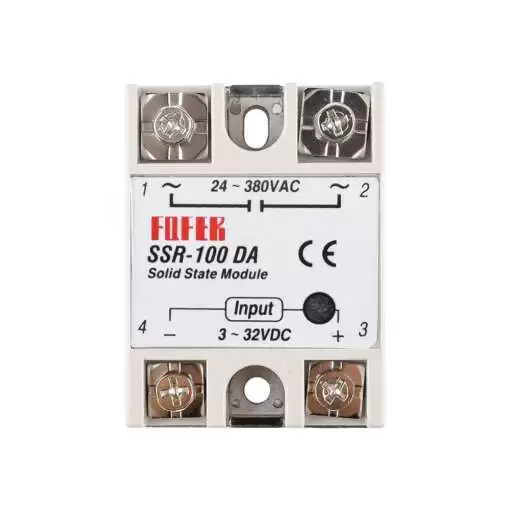

Solid State Relay 3V~32V DC to AC 24V~380V SSR-100 DA

Product Description: Solid state relay SSR-100 DA – 100 A 380VAC / 32VDC

Solid state relay SSR – 100 DA, controlled with the voltage in the range from 3 V to 32 V DC. It allows to control of devices of high power with a voltage from 24 V to 380 V AC and current up to 100 A.

Relay, because it was made in semiconductor technology, is characterized by high reliability. It provides high sensitivity and high switching speed, up to 10 ms. Thanks to the fact that the relay is of a semiconductor material, it does not have mechanical contacts which means it has silent operation. Relays of this type are in great demand in automatic control systems. To ensure long and reliable operation at extreme loads, it is recommended to use the radiators to remove the heat.

Specifications of the SSR-100 DA relay

• Operating voltage (output): 24 V to 380 V AC
• Control voltage (input): 3 V to 32 V DC
• Rated current: 100 A
• Response time: up to 10 ms
• Operating temperature: -30°C to 80°C
• The distance between the holes: is 47 mm
• Status LED

Dimensions

Wiring Diagram
