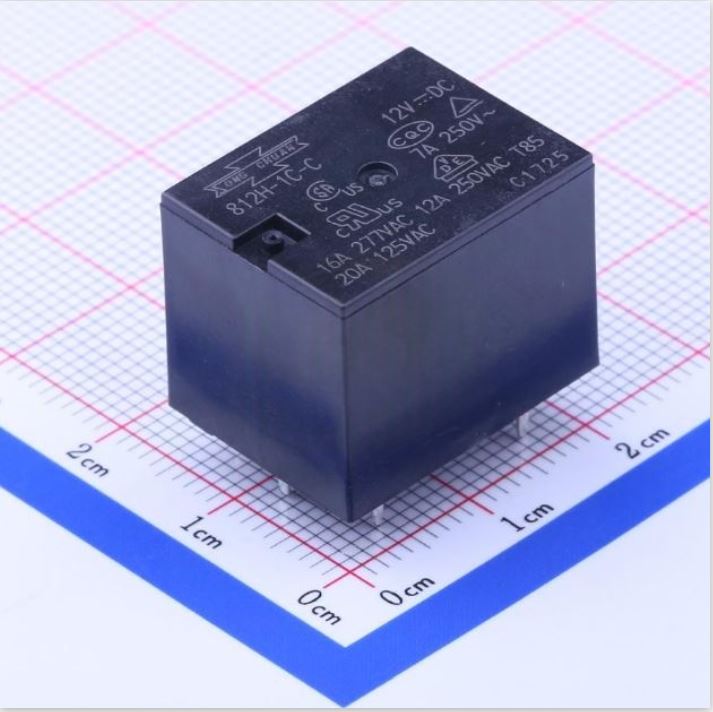

Song Chuan 812H-1C-C-12VDC Power Relay 12V 12A 5 Pin
The Song Chuan 812H-1C-C-12VDC Power Relay is a high-quality miniature PCB-mounted relay designed for demanding switching applications. Operating on a 12VDC coil, it supports a maximum contact rating of up to 12A, making it suitable for medium-power loads in both AC and DC circuits. Its single pole, double throw (SPDT) configuration provides versatile switching options for engineers and designers.
Features:
- Miniature PCB power relay with 10A 250VAC rating.
- High CTI 250 material complying with IEC 60335-1 for household appliances.
- UL Insulation Class F for high-temperature operation.
- Flux-tight enclosure to protect against soldering residues.
Specifications:
| Parameter | Value |
|---|---|
| Product | Power Relays |
| Type | High Power |
| Coil Voltage | 12 VDC |
| Relay Contact Form | 1 Form C (SPDT-NO, NC) |
| Contact Current Rating | 12 A |
| Contact Termination | Solder Pin |
| Mounting Style | Through Hole |
| Switching Voltage | 277 VAC |
| Coil Termination | Solder Pin |
| Coil Type | Non-Latching |
| Coil Resistance | 400 Ohms |
| Coil Current | 30 mA |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Series | 812 |
| Length | 21 mm |
| Width | 16 mm |
| Height | 16.3 mm |
| Brand | Song Chuan |
Dimension & Foot Print

Applications:
- Industrial automation and process control systems.
- Consumer electronics and household appliances.
- Smart home automation and IoT devices.
- Security and alarm systems.
- Power supplies and communication equipment.
