Song Chuan 812H-1C-C-24VDC Power Relay 24V 12A 5 Pin

Song Chuan 812H-1C-C-24VDC Power Relay 24V 12A 5 Pin

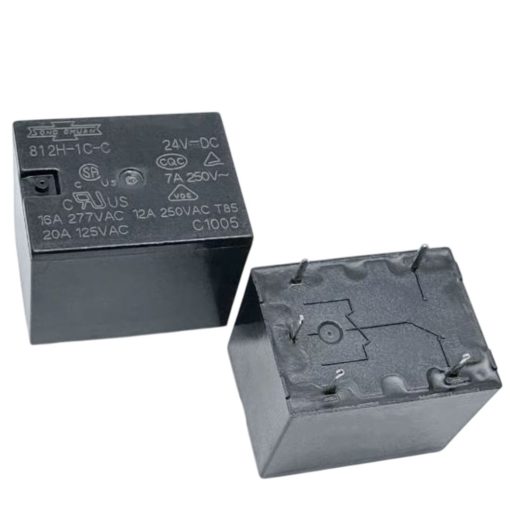

The Song Chuan 812H-1C-C-24VDC is a high-power miniature power relay from the 812H series, engineered for efficient switching in printed circuit board (PCB) applications. This model features a single-pole double-throw (SPDT) contact arrangement, also known as Form C, which allows for versatile circuit control by providing both normally open (NO) and normally closed (NC) options. Operating on a 24VDC coil with a nominal current of 15mA and resistance of 1600Ω, it consumes approximately 0.36W, making it energy-efficient for continuous use in battery-powered or low-power systems. The flux-tight enclosure protects internal components from flux residues during soldering, ensuring long-term reliability without compromising performance.

Features:

• Miniature PCB power relay with 7A 250VAC rating.
• High CTI 250 material complying with IEC 60335-1 for household appliances.
• UL Insulation Class F for high-temperature operation.
• Flux-tight enclosure to protect against soldering residues.

Specifications:

Dimension & Foot Print:

Applications:

• Power supply units and control circuits.
• Industrial automation and process control.
• Consumer appliances and smart electronics.
• Home automation and IoT devices.
• Communication and security equipment.

Datasheet:

812H-1C-C-24VDC
