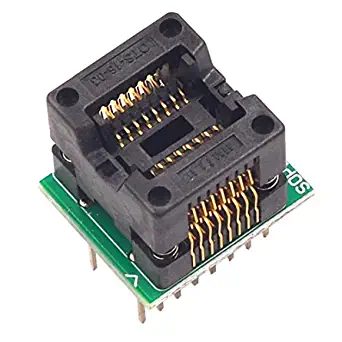

SOP-16 Socket Adapter

Product performance :

1. Material :

a) Insulator , PEI , PPS

b) Shrapnel , beryllium copper Be Cu Gold plating(30) Over Nickel plating(50)

2. Electrical Specification :

a) Insulation resistance : 1000m Min,At DC 500V

b) Voltage resistance : voltage resistance

c) Contact resistance : exceed 25m

d) PIN feet stretch : 55g/PIN(Normal)

e) Operating temperature : – 65 degree to +55 degress

3. Specification and Dimension

a) Type : SOP 16-1.27

b) Pin pitch :1.27 mm

c) Pin Count : 16

d) Applicable IC body width : 3.9mm

Thoery life: 5,000 times(Mechanical)
