SR-602 PIR Motion Detection Sensor

Mini Passive Infrared Motion Sensor PIR

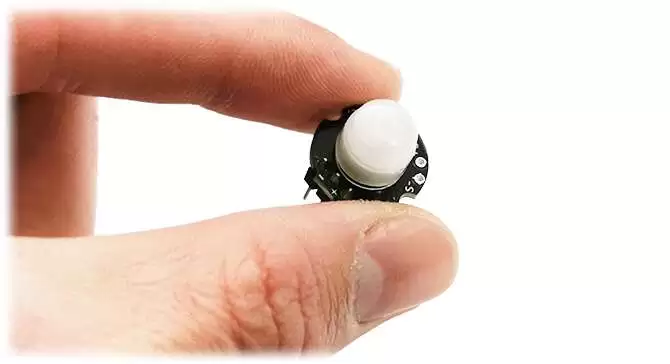

This mini PIR sensor based on MH-SR602 is ideal for detecting movement at a distance of 0 to 3.5m. This module has high sensitivity, fast response, low static energy consumption and a small size, so it is easy to install.

Quick Specifications

• Detection Distance: up to 5 meters; recommended distance: 0-3.5m
• Output: high level, H=3.3V, L=0V
• Power Supply: 3.3 – 15VDC
• Idle Current: 20uA
• The high-level time of the output of this product is adjustable, from 2.5 seconds to 1 hour, the output time set at the factory
• It is 2.5 seconds, and you can change a chip resistor if you need to change it. Please read the resistance value corresponding to the typical delay time
• Blocking time, 2 seconds, not adjustable

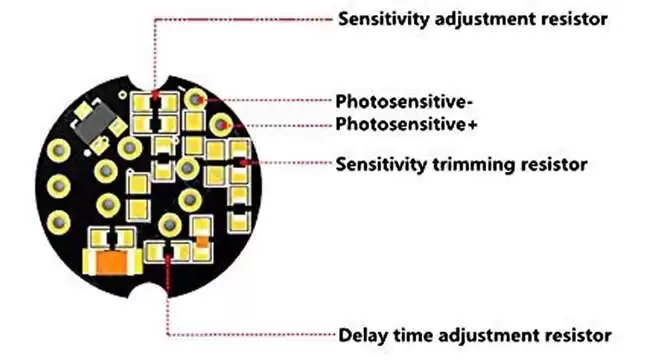

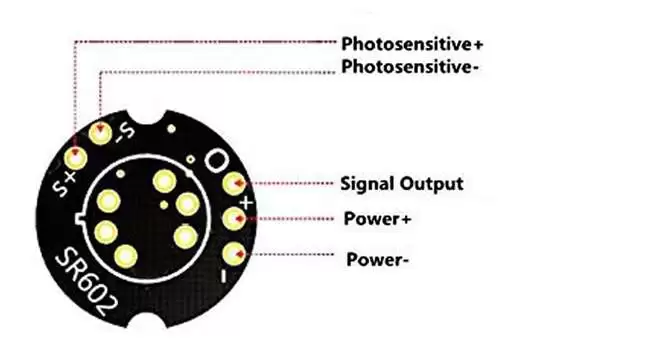

Board Layout
