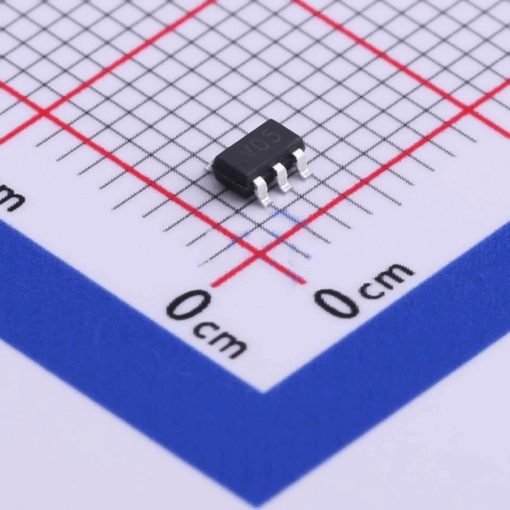

SRV05-4 SOT23-6 Unidirectional 5V ESD and Surge Protection (TVS/ESD) SMD 3A 60W 20V 6V
The SRV05-4 SOT23-6 Unidirectional 5V ESD and Surge Protection (TVS/ESD) SMD 3A 60W 20V 6V is a unidirectional TVS (Transient Voltage Suppression) diode array designed to protect sensitive electronic components from electrostatic discharge (ESD) and transient voltage spikes. Housed in a compact SOT-23-6 package, it is suitable for safeguarding high-speed data lines and power lines in various applications.
Features:
- Ultra low capacitance: 0.3pF typical (I/O to I/O)
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Up to 4 data lines and one power line protects
- Complies with following standards:
- IEC61000-4-2 (ESD) immunity test
- Air discharge: ±30kV
- Contact discharge: ±25kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning): 3A (8/20μs)
- IEC61000-4-2 (ESD) immunity test
- ROHS compliant
Specifications:
| Specification | Value |
|---|---|
| Category | Circuit Protection / ESD and Surge Protection (TVS/ESD) |
| Manufacturer | TECH PUBLIC |
| Package | SOT-23-6 |
| Level of Protection | IEC 61000-4-2 |
| Reverse Leakage Current (Ir) | 500 nA |
| Peak Pulse Current (Ipp) | 3 A |
| Peak Pulse Power (Ppp) | 60 W |
| Clamping Voltage | 20 V |
| Number of Channels | QUAD |
| Voltage – Breakdown | 6 V |
| Polarity | Unidirectional |
| Reverse Stand-Off Voltage (Vrwm) | 5 V |
| Type | ESD |
| Operating Temperature | -55 °C to +125 °C |
Applications:
- USB 2.0 and USB 3.0 ports
- USB OTG
- Digital video interface (DVI)
- Monitor and Flat Panel Displays
- PCI Express and Serial SATA Ports
- Gigabit Ethernet
- IEEE 1394 firewire ports
- Consumer products (STB, DVD, DSC, DVC…)
