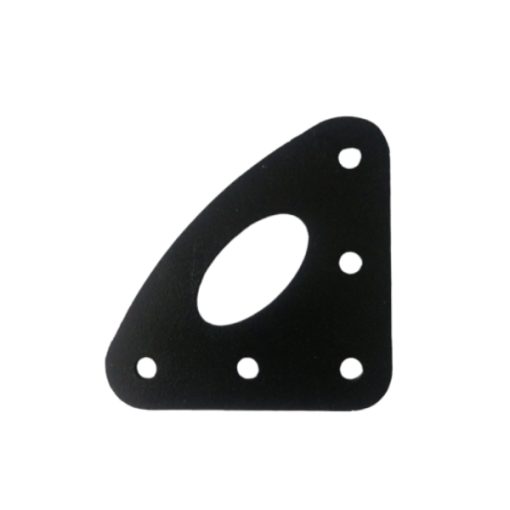

Steel 90 Degree Joining Plate for 2020 Extrusion

Steel 90 Degree Joining Plate for 2020 Extrusion

The Steel 90 Degree Joining Plate for 2020 Extrusion presents a refined and durable solution for framing assemblies built around 20 × 20 mm profile systems. Its clean, right-angle design enables two extrusion elements to be firmly connected at 90°, ensuring structure integrity when multiple members converge. With precision-drilled mounting holes and a robust steel body, this plate becomes a dependable node in any aluminum profile framework.

Manufactured from steel and thoughtfully finished, the plate offers rigidity well above lighter-weight alternatives. Its geometric simplicity belies a strength that supports both static and dynamic loads. When installed on two perpendicular 2020 extrusions, the plate becomes a fixed junction point, resisting twisting and ensuring that the alignment stays true over time.

Ideal for projects where exact squaring is vital whether machine frames, enclosures, or custom structures the plate blends utility and performance. By offering a standardized mounting footprint, it reduces the need for custom machining or ad-hoc fixtures. The result is a streamlined build process and a clean, professional look in the finished assembly.

Features:

• Precisely engineered for 90° connection of two 2020 aluminum extrusions.
• Steel construction for enhanced rigidity and long service life.
• Precisely located mounting holes to match 20 mm profile spacing.
• External-mount design allowing easy installation without modifying extrusion end-faces.
• Finished surface (e.g., electrostatic paint) to resist corrosion and wear.

Specifications:

Applications:

• Industrial frame corner support for 2020 extrusion.
• 3D printer or CNC machine structural junction.
• Automated enclosure or safety guarding frame connection.
• DIY maker-project aluminium profile assembly.

Package Contents:

• 1x Steel 90 Degree Joining Plate for 2020 Extrusion
