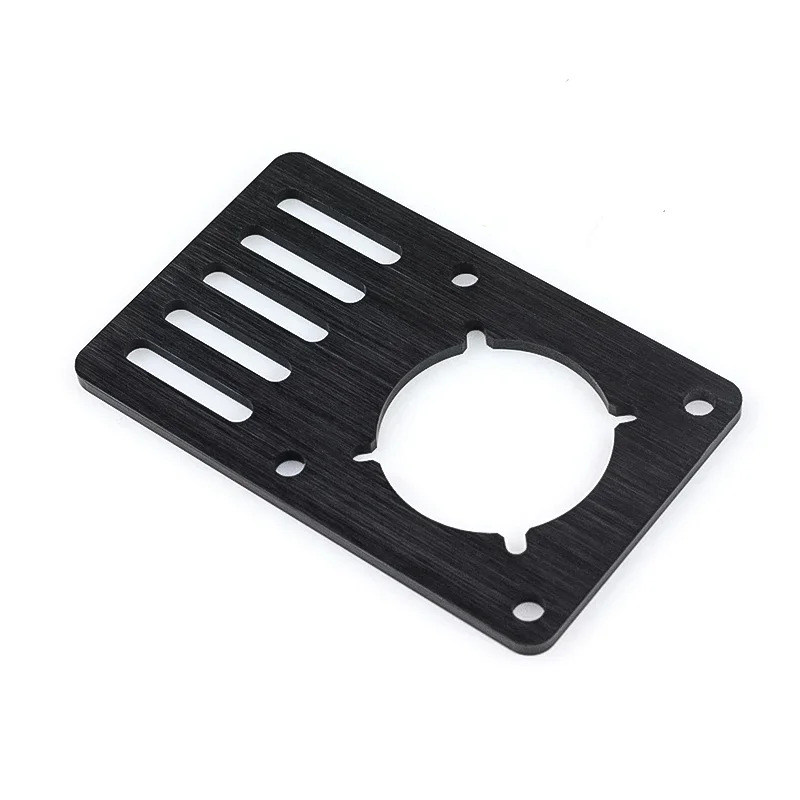

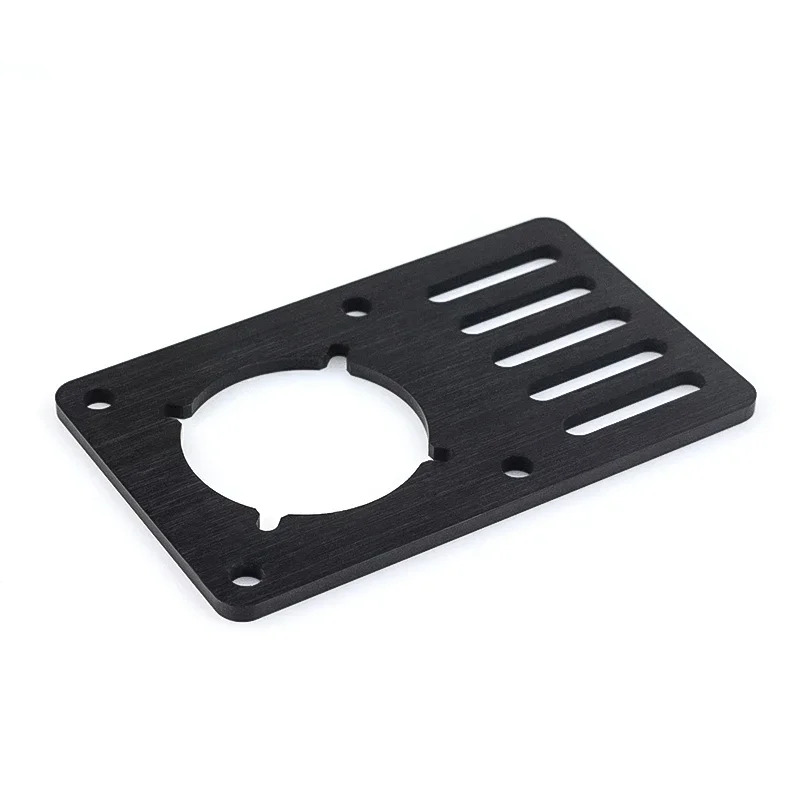

The steel NEMA 23 motor mount plate offers a sturdy, flat mounting platform engineered to hold a NEMA 23 stepper motor securely within a modular framing or motion-system build. Crafted from steel, the plate provides a stable interface between the motor’s flange and the machine frame, helping maintain alignment, absorb vibration and support dynamic loads during operation. The plate’s geometry is designed to match motor mounting patterns and to interface with frame systems providing an efficient mounting solution without requiring custom fabrication or complex adapters.

With its steel construction and refined finish, the mount plate fits cleanly into applications where repeated assembly, disassembly or maintenance might occur. The mount plate’s pre-drilled holes correspond to standard NEMA 23 bolt patterns, while the plate itself can be affixed to structural profiles, bars or machine bases. Its design emphasizes ease of installation and alignment enabling the motor shaft to align, belt or lead-screw coupling to be precise, and the assembly to remain rigid under torque and motion.

Whether you’re integrating a NEMA 23 motor into a CNC axis, a robot arm, a custom 3D printer or modular automation system, this mount plate delivers a reliable mechanical interface. It eliminates the need for bespoke mounts, expedites installation, and provides structural integrity at the junction of motor and frame. In effect, the plate acts as the mechanical bridge that ensures the motor’s power is effectively translated into linear or rotary motion without introducing misalignment, looseness or flex.

Features:

• Steel construction for structural strength and durability.
• Pre-drilled bolt pattern matching NEMA 23 stepper motor flange.
• Flat mounting surface for secure attachment to frame or base.
• Compatible with modular framing systems (profiles, rails, machine bases).
• Smooth, finished surface for corrosion resistance and clean aesthetics.
• Simplifies motor-to-frame integration and alignment.
• Designed to reduce vibration and mechanical play at the motor mount.

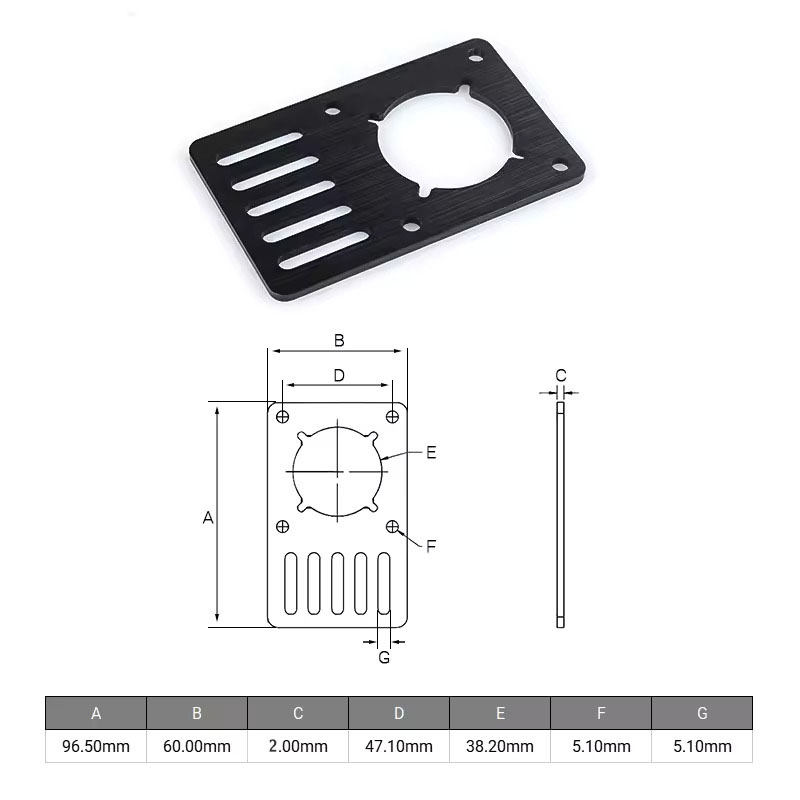

Specifications:

Applications:

• Mounting a NEMA 23 stepper motor to a CNC machine axis.
• Integrating a NEMA 23 motor into a custom robot arm or gantry.
• Securing a NEMA 23 motor to a modular V-slot or profile framing system.
• Using a NEMA 23 motor mount in 3D printers or automation equipment.
• Upgrading or retrofitting motor mounting in motion-control assemblies.

Package Contents:

• 1x Steel NEMA 23 Motor Mount Plate – OpenBuilds
