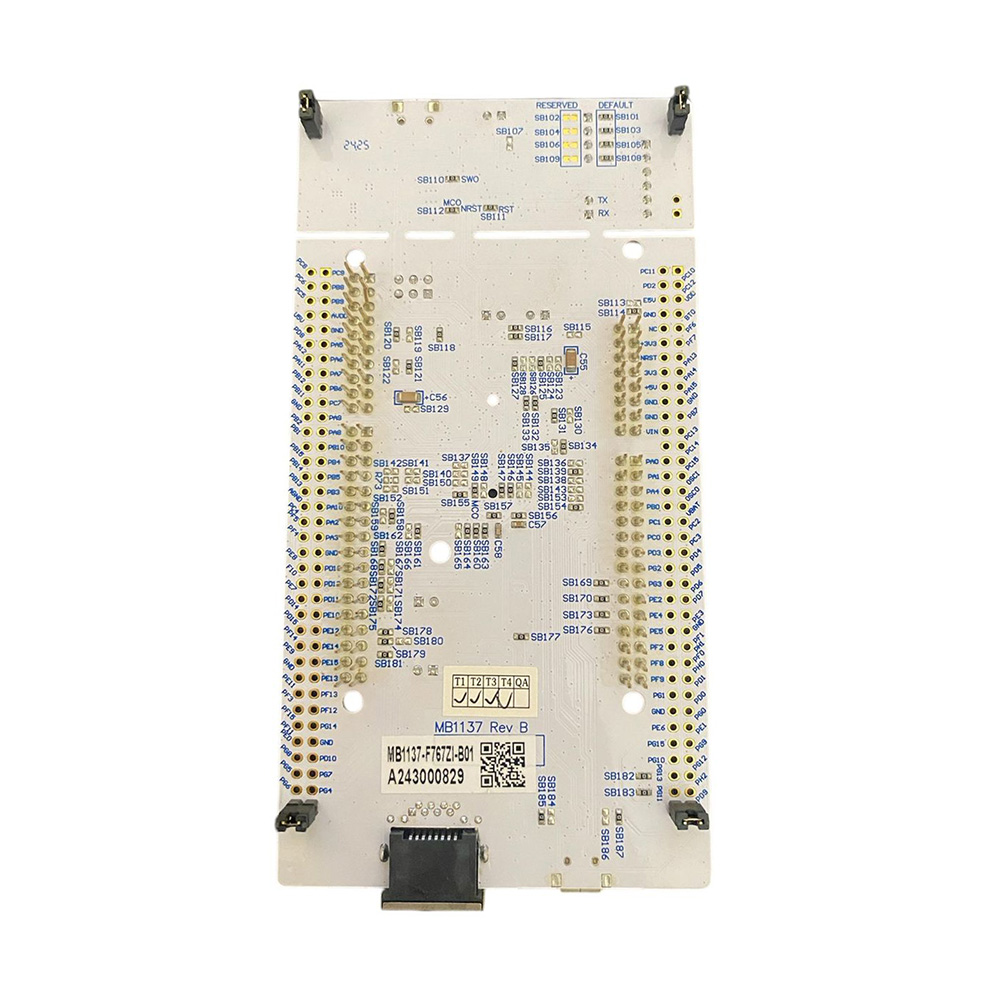

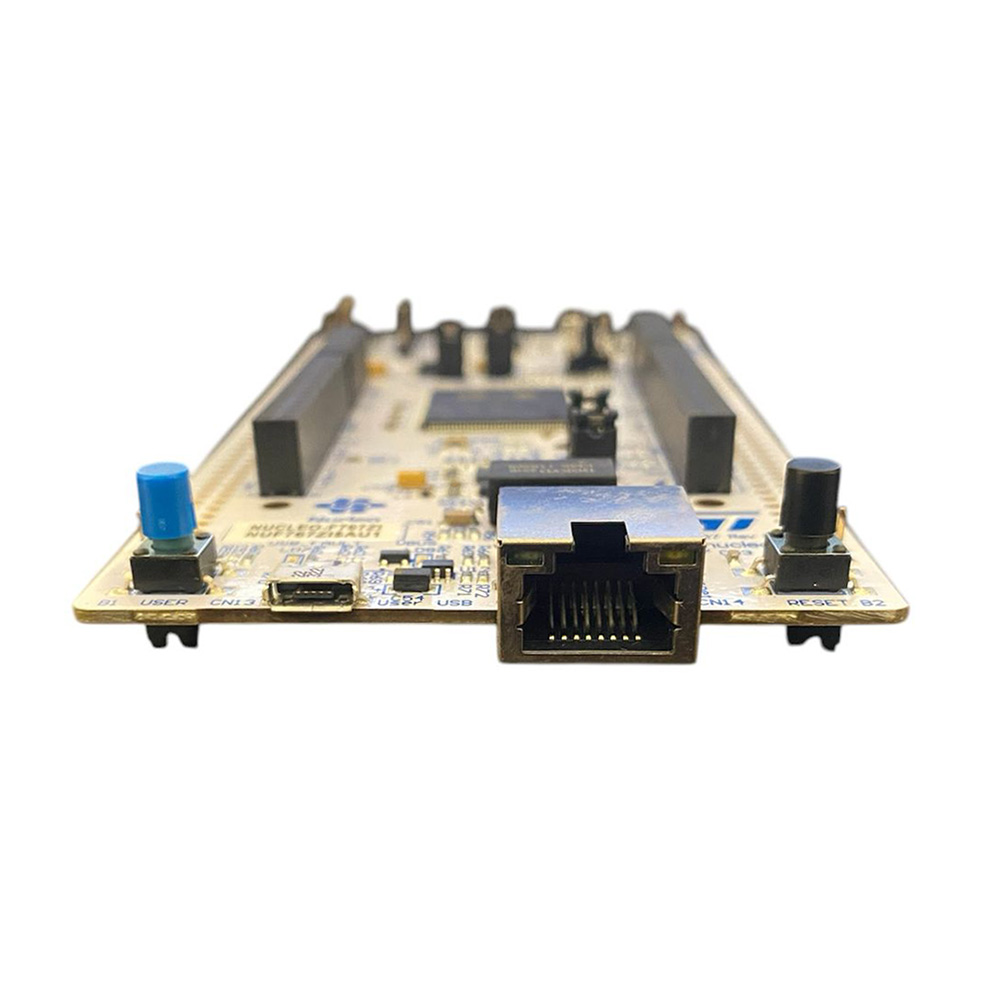

STM32 NUCLEO-F767ZI Development Board: High-Performance Embedded Solutions with Advanced Connectivity
Features:
- Microcontroller: STM32F767ZI with ARM Cortex-M7 core running at up to 216 MHz, providing robust processing power for demanding applications.
- Memory: 2 MB Flash memory and 512 KB SRAM, accommodating large codebases and data-intensive tasks.
- Connectivity:
- USB: USB Type-C® connector for ST-LINK interface and user USB interface.
- CAN: CAN FD transceiver for high-speed communication in automotive and industrial systems.
- Ethernet: 10/100 Mbps Ethernet for network connectivity.
- Audio: Integrated audio DAC and ADC with support for I2S interface.
- Expansion:
- ARDUINO® Uno V3 Connector: For compatibility with a wide range of Arduino shields.
- ST Morpho Headers: Provide access to all STM32 I/Os for flexible expansion.
- User Interface:
- LEDs: Two user LEDs for status indication.
- Buttons: One user push-button and one reset push-button for user interaction.
- Power Supply Options: Selectable power sources including ST-LINK USB VBUS or external power inputs.
- Software Support: Comes with STM32Cube MCU Package, offering comprehensive software libraries and examples.
- Debugger/Programmer: Integrated ST-LINK debugger/programmer with USB re-enumeration capability, supporting mass storage, Virtual COM port, and debug port.
Specifications:
| Attribute | Value |
|---|---|
| Microcontroller | STM32F767ZI (ARM Cortex-M7, up to 216 MHz) |
| Flash Memory | 2 MB |
| SRAM | 512 KB |
| Operating Voltage | 3.3V, 5V, 7V to 12V |
| Timers | Advanced control timers, general-purpose timers, basic timers |
| Communication Interfaces | USB OTG, CAN FD, Ethernet, I2S |
| Package | LQFP144 |
| Dimensions | 102 mm x 53 mm |
Applications:
- Embedded Systems Development: Ideal for designing and prototyping complex embedded applications requiring high performance and connectivity.
- Industrial Automation: Suitable for control systems, data acquisition, and process monitoring in industrial environments.
- Automotive Systems: Equipped with CAN FD transceiver, making it suitable for automotive communication protocols.
- Networking Equipment: Ethernet connectivity supports development of networked devices.
- Audio Processing: Integrated audio interfaces facilitate development of audio applications.
- Educational Purposes: Provides a platform for learning and experimenting with ARM Cortex-M7 architecture and embedded system design.
