SUNSHINE DT-9205E Digital Multimeter
The DT-9205E presents a thoughtfully designed digital measurement instrument aimed at delivering reliable readings with ease. Its ergonomic form factor and pocket-friendly size make it convenient to carry into field settings, workshop benches, or laboratory workspaces.
At the heart of the device is a clear large-screen LCD which makes observation of measurement values effortless, even under less-than-ideal lighting or from angled viewing positions. Coupled with intuitive controls, the meter offers a smooth interplay of usability and precision.
Aimed at both professionals and hobbyists, this multimeter blends simplicity and capability: you’ll find a robust rotary switch, clear labelling, and a construction that conveys durability while remaining compact. It’s a tool you reach for when you want trustworthy results without fuss.
Features:
- Uses CMOS integrated circuitry and a double-integral A/D conversion scheme with automatic zeroing and automatic polarity selection.
- Large, high-contrast LCD display (70 × 40 mm) and characters up to ~25 mm, with a viewing angle around 70° for improved legibility.
- Automatic power-off function after about 25 minutes of inactivity to conserve battery life. Rotary switch with ~32 positions (range/function) designed for intuitive selection and improved reliability in operation.
- Audible beep/continuity tone when testing live circuits or continuity conditions.
Specifications:
| Parameter | Value / Range |
|---|---|
| DC Voltage: | 200 mV – 1000 V (± 0.5% + 1 digit) |
| AC Voltage: | 2 V – 750 V (± 0.8% + 3 digits) |
| DC Current: | 2 mA – 20 A (± 0.8% + 1 digit) |
| AC Current: | 2 mA – 20 A (± 1% + 3 digits) |
| Resistance: | 200 Ω – 20 MΩ (± 2.5% + 3 digits) |
| Capacitance: | ~2 nF – 200 µF |
| Maximum Display: | 1999 counts |

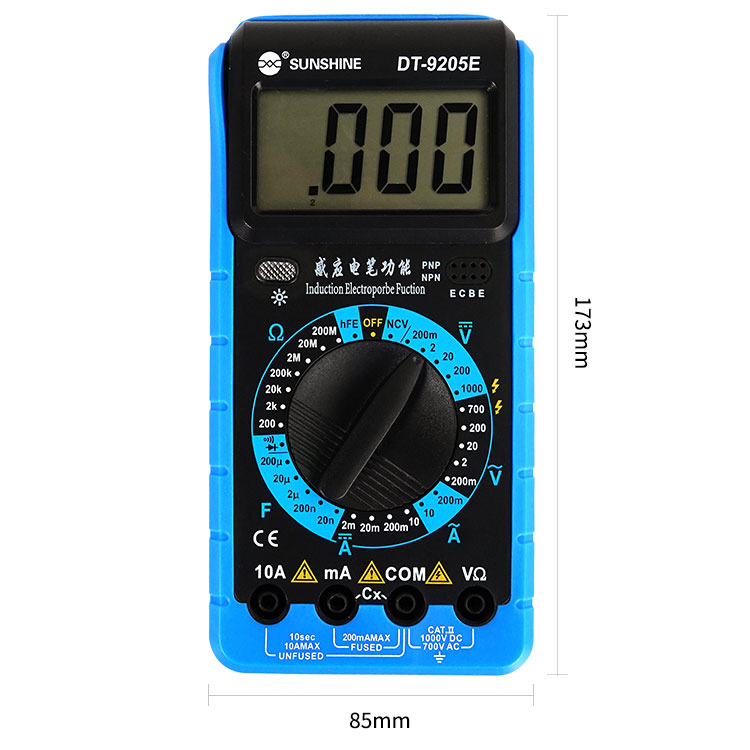

| Size: | 173 × 85 × 30 mm |
| Power Supply: | 9 V battery (6F22) |
Applications:
- Engineering design and prototyping.
- Laboratory instrumentation and measurement.
- Pilot production and factory maintenance.
- Field operations and industrial maintenance.

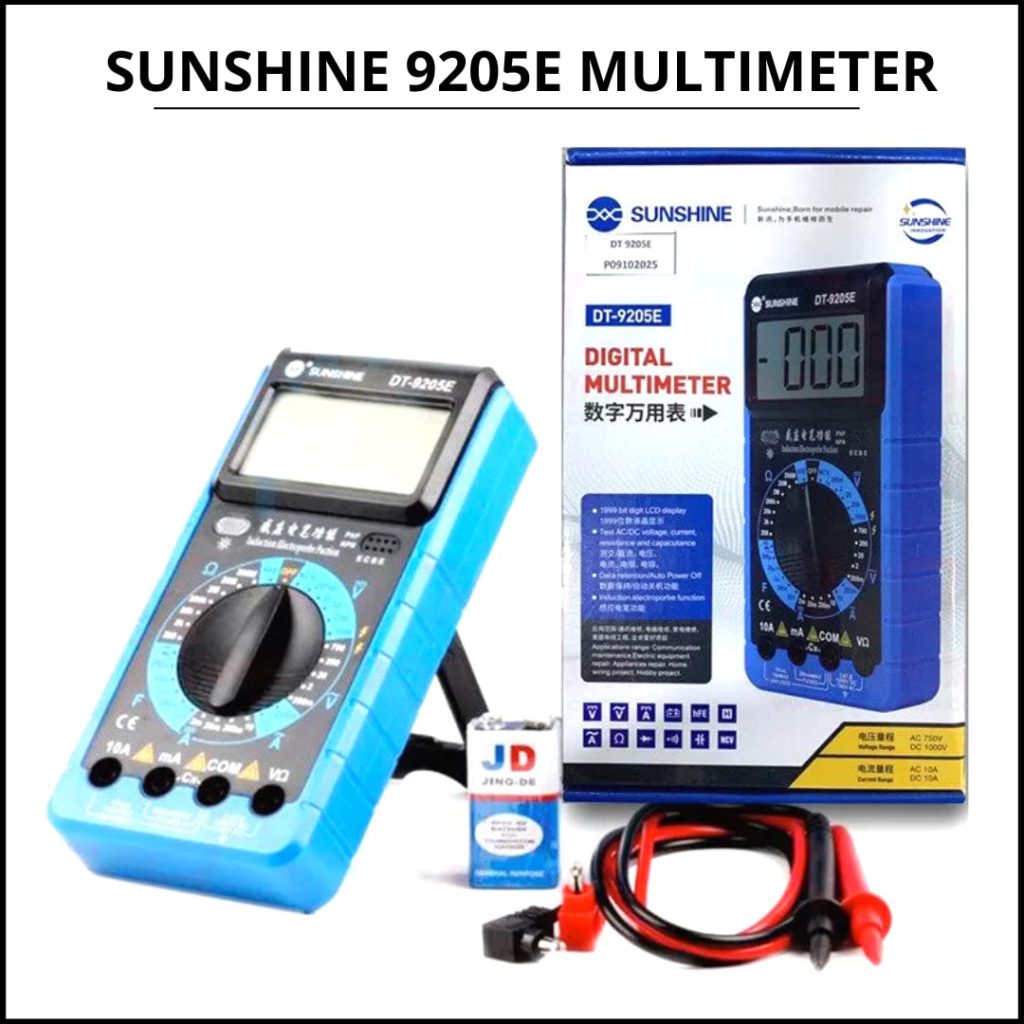

Package Contents:
- 1x Digital multimeter unit
- 1x Battery (9 V type)
- 1x Test leads/probes
- 1x Instruction manual (English/Chinese)
