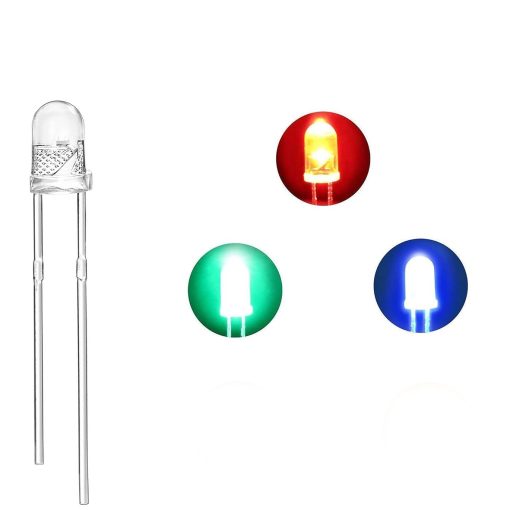

Super Bright Round Transparent LED 3mm 2Pin
The Super Bright Round Transparent LED 3mm 2Pin Green, Red, and Blue LED light color are offers high-intensity illumination in a compact, clear-lens design. Each LED delivers vibrant and focused light output with excellent color purity—green for visibility, red for indication, and blue for decorative or signal lighting. Built with durable epoxy resin, these LEDs ensure long lifespan, low power consumption, and reliable performance. Their 3mm size and 2-pin configuration make them easy to install on circuit boards or in custom projects. Ideal for indicators, displays, models, and DIY electronics, these LEDs provide brilliant brightness with minimal energy use.
Features
- Compact 3mm transparent round lens for focused illumination.
- Super bright light output with vivid color intensity.
- Low power consumption and high efficiency.
- Long lifespan and reliable performance.
- Easy installation with standard 2-pin through-hole design.
- Available in Green, Red, and Blue color options.
- Ideal for indicators, displays, and DIY electronic applications.
- Wide viewing angle and stable brightness.
Specifications
| Parameter | Green LED | Red LED | Blue LED |
| LED Type | Super Bright Transparent LED | Super Bright Transparent LED | Super Bright Transparent LED |
| Shaped | Round | Round | Round |
| Diameter | 3mm | 3mm | 3mm |
| LED Lens Color | Transparent | Transparent | Transparent |
| Emitting Color | Green | Red | Blue |
| Forward Voltage (Vf) | 2.0V – 3.2V | 1.8V – 2.2V | 3.0V – 3.4V |
| Forward Current (If) | 20mA | 20mA | 20mA |
| Viewing Angle | 20° – 30° | 20° – 30° | 20° – 30° |
| Luminous Intensity | 4000 – 8000 mcd | 2000 – 5000 mcd | 3000 – 7000 mcd |
| Wavelength / Color Temp | 520 – 530 nm | 620 – 630 nm | 460 – 470 nm |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Pin Configuration | 2 Pin (Anode +, Cathode –) | 2 Pin (Anode +, Cathode –) | 2 Pin (Anode +, Cathode –) |
| Package Material | Epoxy Resin | Epoxy Resin | Epoxy Resin |
| Operating Temperature | –25°C to +85°C | –25°C to +85°C | –25°C to +85°C |
| Storage Temperature | –30°C to +100°C | –30°C to +100°C | –30°C to +100°C |

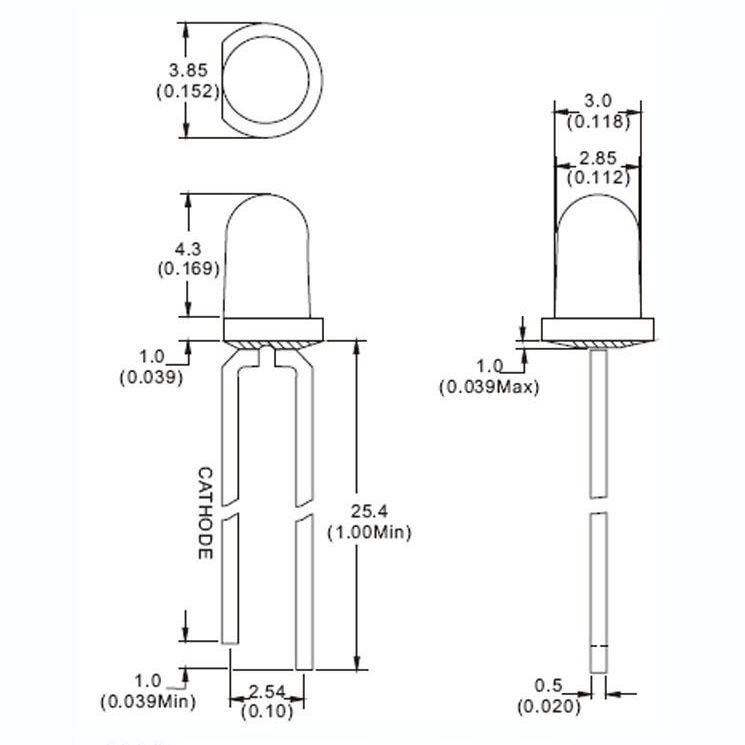

Dimensions
Applications
- Indicator lights for electronic devices and control panels.
- Status and signal displays in circuits and instruments.
- Decorative and ambient lighting in models or crafts.
- Backlighting for switches and dashboards.
- DIY and educational electronic projects.
- Visual alerts in automation and communication systems.
- Light sources in toys, signs, and small gadgets.
Package Contents
- 1 x Super Bright Round Transparent LED 3mm 2Pin
