Features:
- Small-sized,but large capacity
- Unlikebattery, almost unlimited charge/discharge cycle
Applications:
- Ideal for solar watches, solar calculators, MP3, PMP,Memory back-up for Cellular phone, Digital camera, PDA, Digital Photo Frame, Digital Health Care Devices
Specifications:
| Part No. | DMS 3R3 224 |
| Cell Size | Ø6.8 × 1.4mm |
| Operating Temp. | -10 ~ +60 ℃ |
| Rated Voltage | 3.3Vdc |
| Capacitance | 0.22F |
| Discharge Capacity | 72.0 uAh (3.3V-2.0V) |
| Capacitance Tolerance | -20 ~ 80 % |
| ESR (at 1KHz) | LESS THAN 200Ω |
| Leakage Current | LESS THAN 150㎂ |
|
Endurance |
After 1,000hours application of rated DC working voltage at +60℃, the capacitor shall meet the following limits. |
| Capacitance change | ±30% of the initial value |
| Internal resistance | ≤400% of the initial value |
| Shelf Life | After 1,000hours storage at +60℃ without load, the capacitor shall meet the specified limit for “Endurance” |

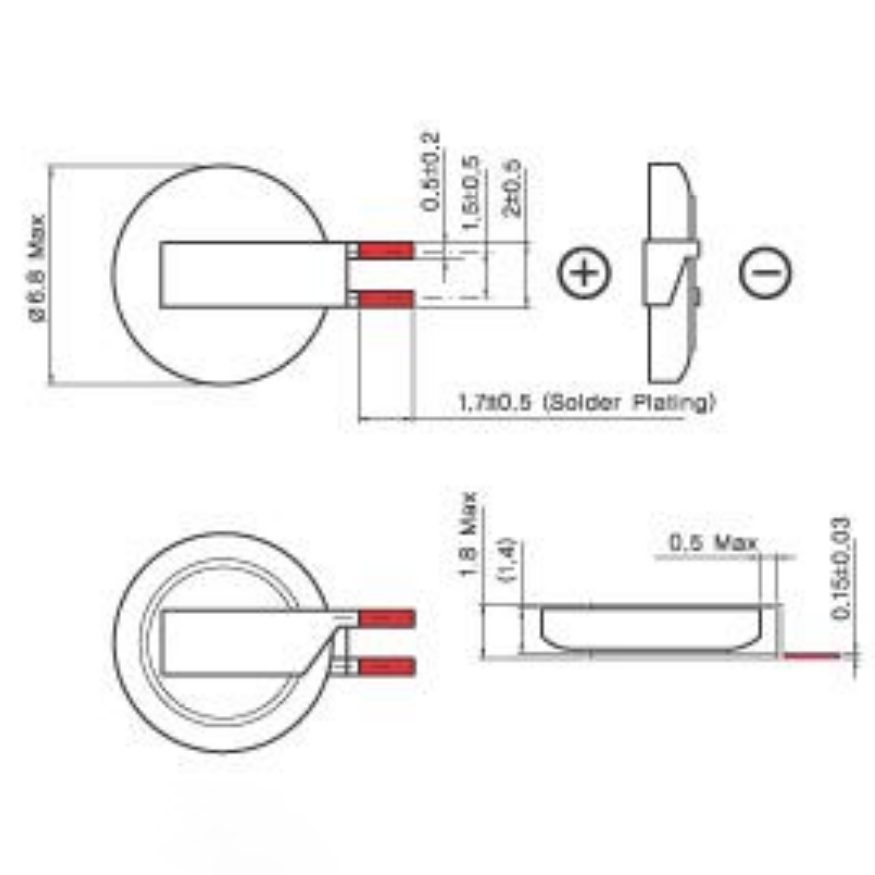

Dimensions in mm
Super Capacitor 3.3V 0.22F Datasheet
Package List:
1x Super Capacitor 3.3V 0.22F 6.8×1.4mm
