Features
- Can be used as substitution of rechargeable batteries andideal for RTC back-up purposes
- Eco-friendly: RoHS compliant
- Pb-free Reflowable: Pb-free reflow soldering available (260℃ peak)
- High Operational Voltage: Able to be used at wide voltage range from 0V to 3.3V
- Various Terminal Types
Applications
- RTC(RealTime Clock) back-up for Mobile Phones, Digital Cameras, PMP, Pagers,
Specifications:
Part No. | SM 3R3 333 |
Cell Size | Ø3.8 × 1.1mm |
Operating Temp. | -10 ~ +60 ℃ |
Rated Voltage | 3.3Vdc |
Capacitance | 0.033F |
Discharge Capacity | 11.9 uAh (3.3V-2.0V) |
Capacitance Tolerance | -20 ~ 80 % |
ESR (at 1KHz) | LESS THAN 300Ω |
Leakage Current | LESS THAN 100㎂ |
Endurance | After 500hours application of rated DC working voltage at +60℃, the capacitor shall meet the following limits. |
Internal resistance | 4,000Ω or less |
Shelf Life | After 500hours storage at +60℃ without load, the capacitor shall meet the specified limit for “Endurance” |

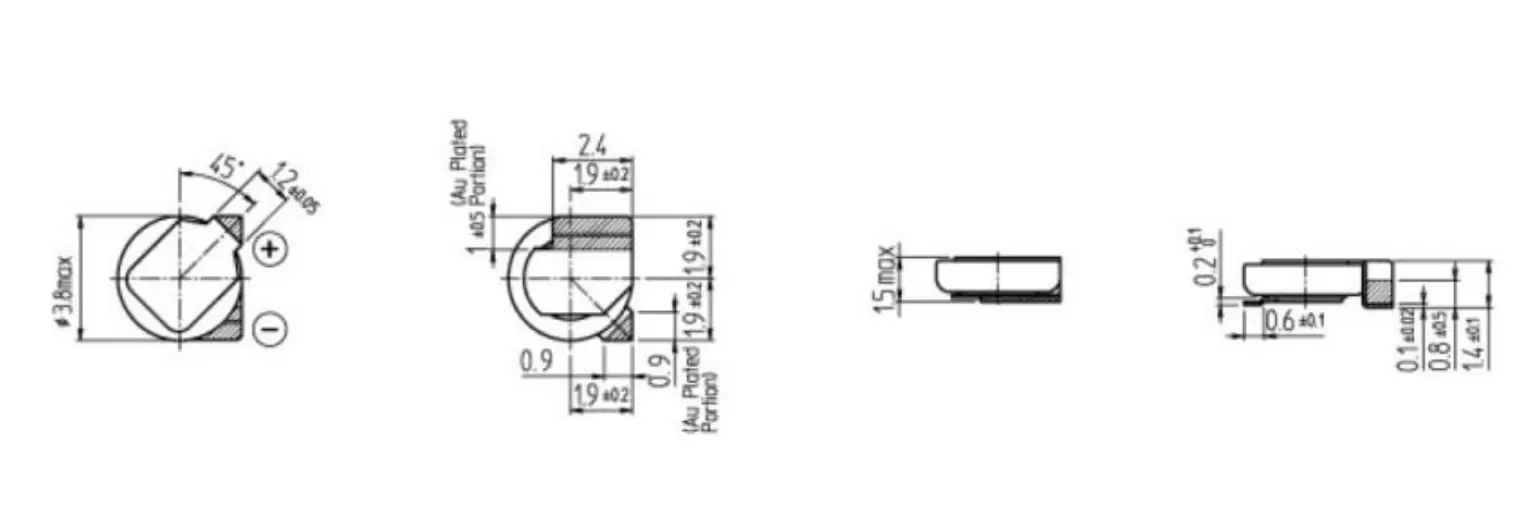

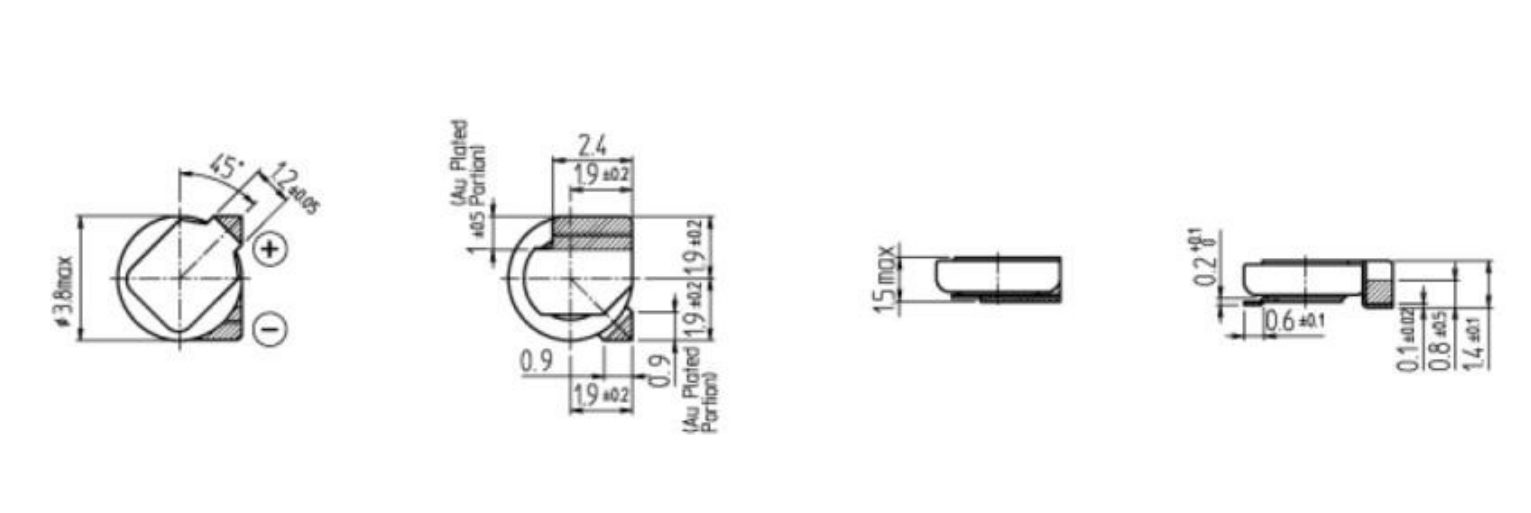

Dimensions in mm
Super Capacitor 3.3V 0.033F Datasheet
Package List:

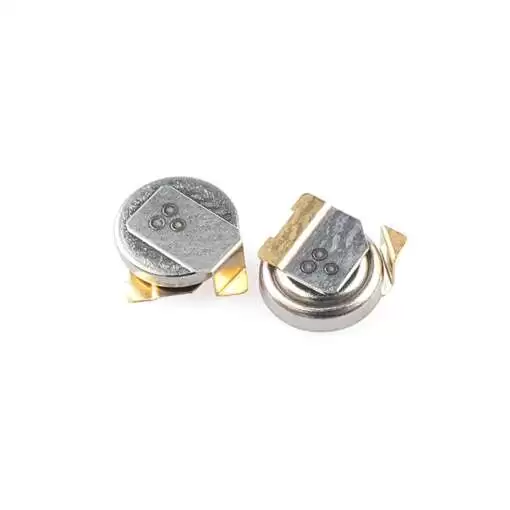

1x Super Capacitor 3.3V 0.033F 3.8×1.1mm
