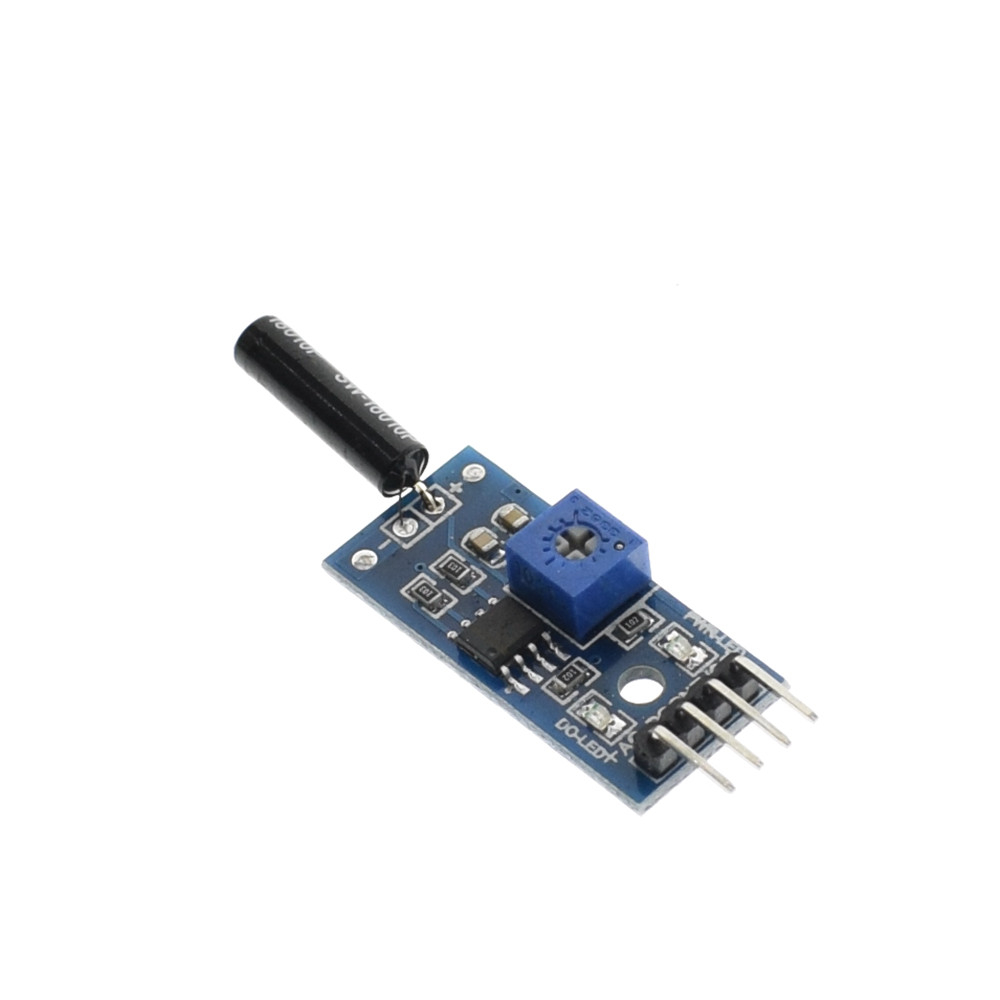

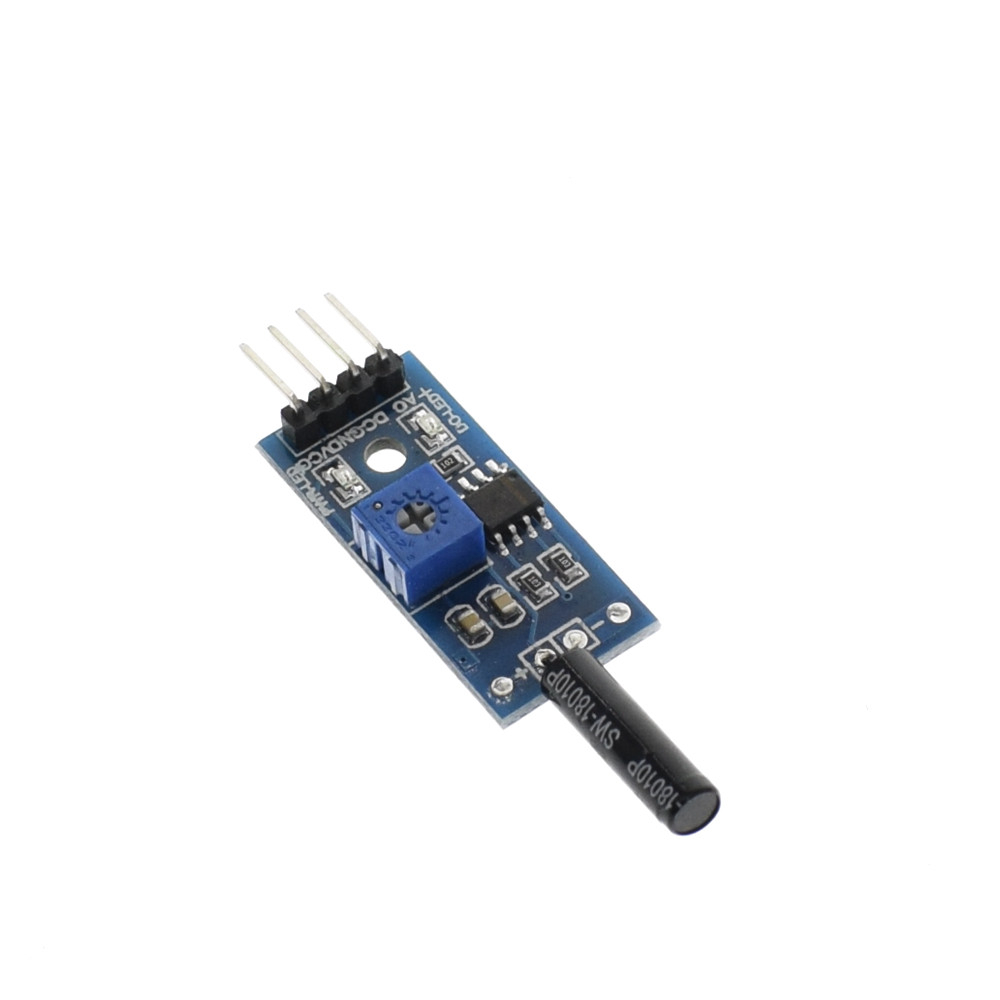

SW1801P Vibration Switch Module 4 Pin
The SW1801P Vibration Switch Module 4 Pin is a compact, high-sensitivity sensor designed for detecting vibrations and tilting movements in a wide range of electronic applications. Built around the SW-18010P vibration sensor, this module utilizes a spring-based mechanism that responds to physical disturbances by closing an internal circuit, triggering a reliable output signal. This functionality makes it an excellent choice for projects requiring precise motion detection, from simple alarm systems to advanced robotics and industrial monitoring applications.
Features:
- High-sensitivity vibration detection using SW-18010P sensor.
- Dual digital and analogue outputs for versatile applications.
- Adjustable sensitivity via onboard potentiometer.
- Operating voltage range of 3.3V to 5V.
Pin Configuration:
VCC: Module power supply – 3.3V to 5V
GND: Ground
D0: Digital Output
A0: Analog Output
Specifications:
| Parameter | Value |
|---|---|
| Operating Voltage | 3.3V–5V |
| Output Type | Digital (DO), Analog (AO) |
| Comparator | LM393 |
| PCB Dimensions | 30mm x 14mm |
| Sensor Type | SW-18010P |
Applications:
- Theft alarm systems for detecting unauthorized access.
- Smart car vibration detection for collision or terrain monitoring.
- Electronic building blocks for educational and prototyping projects.
- Motion detection in security systems for enhanced protection.
- Vibration monitoring in industrial equipment for maintenance.
Package Include:
- 1 x SW1801P Vibration Switch Module 4 Pin.
