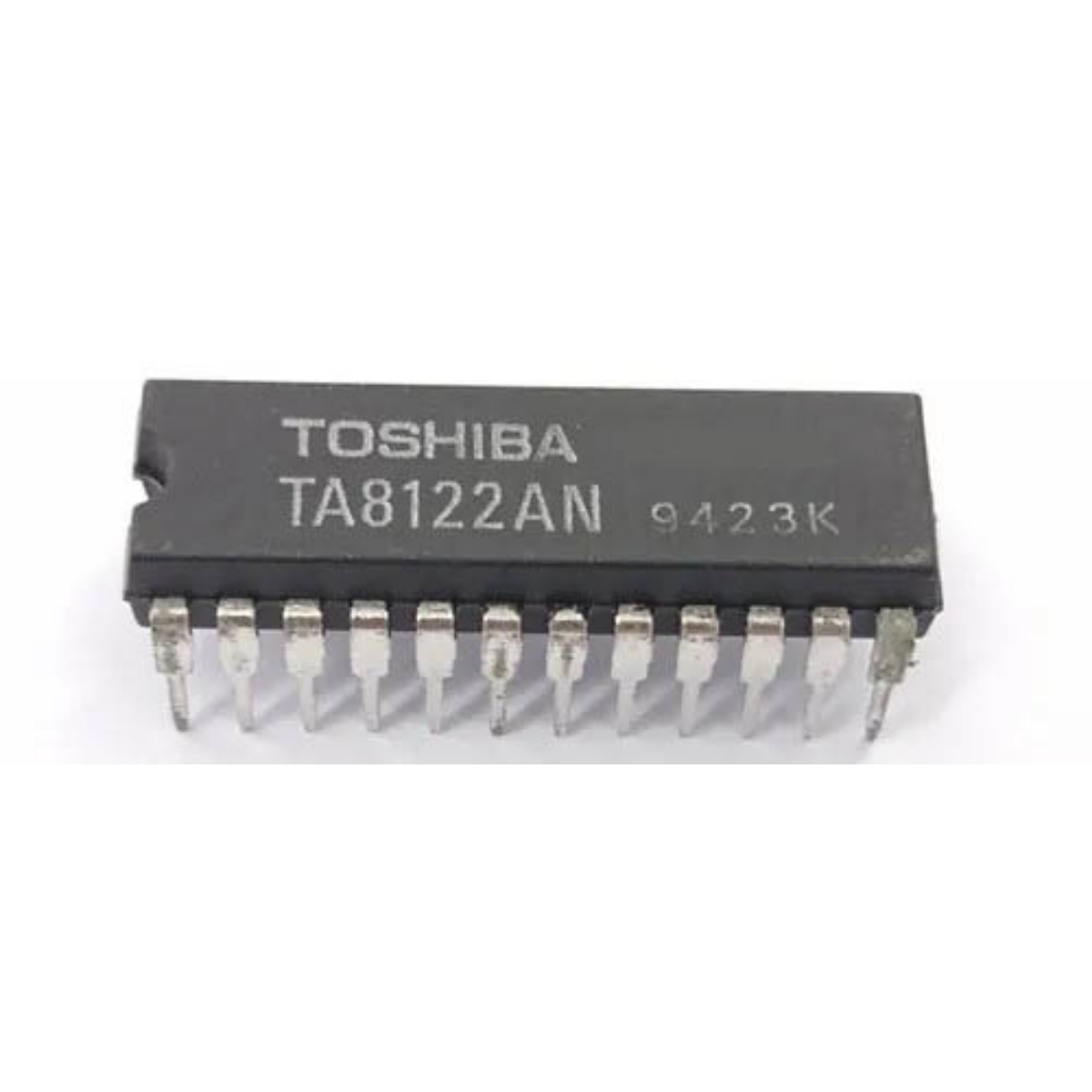

TA8122AN TOSHIBA 3V 14mA Single-Chip Tuner IC SDIP-24
TA8122AN is A low-power, single-chip AM/FM tuner IC used to build compact portable radios and 3V headphone/FM receivers.
30.00 EGP
Buy NowTA8122AN TOSHIBA 3V 14mA Single-Chip Tuner IC SDIP-24
The TA8122AN is a 3V AM/FM 1-chip tuner IC that integrates RF, mixer, IF, detector and related control circuits to provide a complete receiver front-end for small portable and headphone radios. Its design minimizes external tuned components (supports ceramic discriminator / resonator), simplifies board layout and eases manufacture of compact radios while keeping power consumption low for battery operation.
Internally the device includes FM RF and mixer stages, AM/FM IF, AGC and stereo decoding-related circuitry plus outputs for tuning and stereo LEDs and audio outputs (L/R). The TA8122AN is available in a shrink DIP-24 through-hole package (and an SSOP24 variant) and is specified for an operating supply range that makes it suitable for single- or two-cell battery operation; the datasheet also provides recommended external component kits (ceramic filters/resonators) and typical application circuits for quick integration.
Features:
- Single-chip AM/FM tuner (RF → IF → detector → outputs).
- Built-in FM front end, IF, FM stereo detector and AM detector.
- Designed for use with ceramic discriminator / ceramic resonator (reduces external parts).
- Integrated AGC and LED drive outputs (tuning / stereo indication).
- Compact package options for space-limited designs (shrink DIP / SSOP).
Specifications:
| Parameter | Value |
|---|---|
| Operating supply voltage (VCC) | 1.8 – 7.0V |
| Operating voltage | 3.0V |
| Supply current (FM mode) | 14.0mA / Max 18.5mA |
| Supply current (AM mode) | 6.0mA / Max 8.3mA |
| Signal-to-Noise Ratio (FM stereo) | 70dB |
| Input resistance (audio) | 24kΩ |
| Output resistance (audio) | 5kΩ |
| Max composite signal input | 350mVrms |
| Operating Temperature | -25 _ 75 C |
| Storage Temperature | -55 _ 150 C |
| Absolute maximum supply voltage | 8V |
| Power dissipation | 1200mW |
Pinout:
| Pin | Function | Pin | Function |
|---|---|---|---|
| 1 | FM RF input | 13 | Right audio output |
| 2 | RF ground | 14 | Left audio output |
| 3 | FM mixer | 15 | VCO related pin |
| 4 | AM mixer | 16 | Low-pass filter 2 |
| 5 | AM AGC | 17 | Low-pass filter 1 |
| 6 | VCC (IF / MPX) | 18 | FM stereo detector input |
| 7 | AM IF input | 19 | Detector output |
| 8 | FM IF input | 20 | AM oscillator |
| 9 | IF / MPX ground | 21 | FM oscillator |
| 10 | Tuning LED output | 22 | VCC (RF) |
| 11 | Stereo LED output | 23 | FM RF output |
| 12 | FM quad detector | 24 | AM RF input |
Footprint:
Applications:
- Portable AM/FM radios and headphone radios (battery-powered).
- Small consumer FM/AM receivers and radio modules.
Packages:
- 1x TA8122AN TOSHIBA 3V 14mA Single-Chip Tuner IC SDIP-24.
