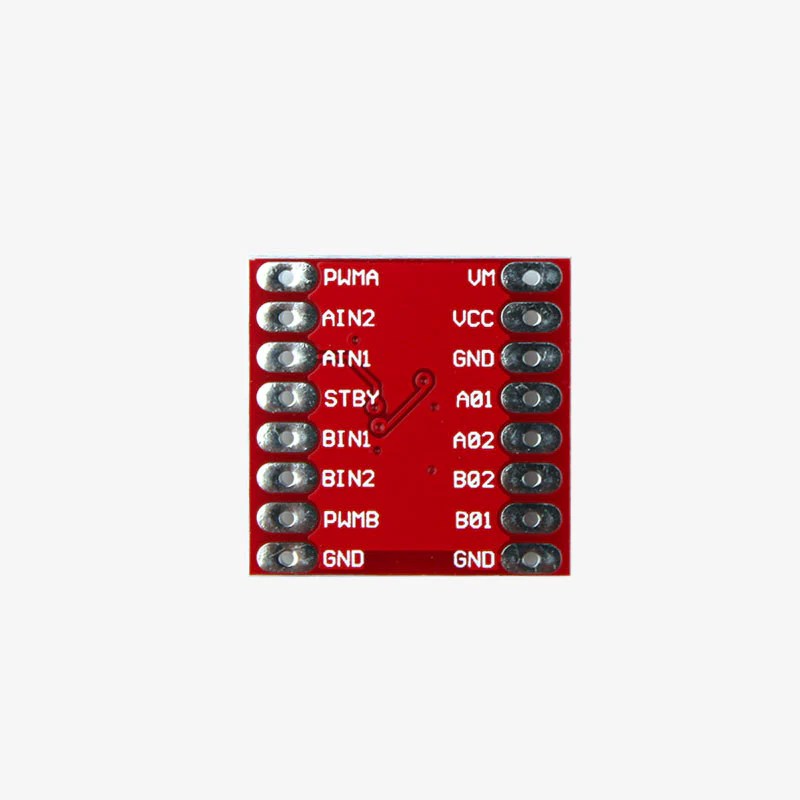

TB6612FNG Motor Driver Module 2 Channel HW-166
Power up your projects with the TB6612FNG Motor Driver Module 2 Channel HW-166—a tiny yet mighty module that puts you in command of two DC motors or one stepper motor. Built around Toshiba’s efficient TB6612FNG chip, this driver delivers smooth speed and direction control via PWM signals, making it a go-to for robotics, automation, and DIY creations.
This module shines with its ability to independently drive two motors, giving you the freedom to craft precise movements or dynamic steering. At up to 95% power efficiency, it’s a dream for battery-powered builds, keeping energy waste low and runtime high. Safety’s covered too, with thermal shutdown and low voltage protection baked in.
At just 20mm x 20mm, it slips into even the tightest designs. Hook it up effortlessly to Arduino, Raspberry Pi, or other microcontrollers with its standard 0.1″ pins.
Features
- Dual-Channel Flexibility: Control two DC motors or one stepper motor independently.
- Top Efficiency: Up to 95% power efficiency for longer-lasting projects.
- PWM Precision: Fine-tune speed and direction with ease.
- Built-In Safety: Thermal shutdown and low voltage protection keep things running smoothly.
- Tiny Footprint: 20mm x 20mm size fits anywhere.
Specifications
| Specification | Details |
|---|---|
| Motor Supply Voltage (VM) | 2.5V to 13.5V |
| Logic Supply Voltage (VCC) | 2.7V to 5.5V |
| Maximum Output Current | 1.2A per channel (3.2A peak) |
| PWM Frequency | Up to 100kHz |
| Control Modes | CW, CCW, short-brake, stop (DC); step control (stepper) |
| Operating Temperature | -20°C to 85°C |
| Dimensions | 20mm x 20mm |
Applications
- Robots that roam or pivot with precision.
- Automation for doors, fans, or mini conveyors.
- RC vehicles craving speed and control.
- Stepper-driven setups like 3D printers or CNC tools.
Package Content
- 1 x TB6612FNG Motor Driver Module 2 Channel HW-166
- 2 x PIN Headers
