TC4019BP Quadruple 2-input multiplexer DIP-16
The TC4019BP is a quadruple 2-input multiplexer housed in a DIP-16 package, specifically designed for digital signal routing and multiplexing applications. This device is ideal for systems that require the efficient selection of data paths between multiple signals, allowing for flexible data routing in various electronic systems. The TC4019BP operates using CMOS technology, ensuring low power consumption and high noise immunity.
Features:
- Four independent 2-input multiplexers in a single DIP-16 package.
- Low power consumption, making it energy-efficient.
- High noise immunity, ensuring stable performance in various conditions.
- Wide operating voltage range from 3VDC to 18VDC
Specifications:
| Parameter | Value |
|---|---|
| Logic Family | CMOS |
| Supply Voltage Range | 3VDCto18VDC |
| Absolute Maximum Supply Voltage | -0.5VDCto20VDC |
| Input Voltage Range | -0.5VDCtoVDD+0.5VDC |
| Output Current (High/Low) | -6.8mA/6.8mA |
| Propagation Delay Time | 300nsat5VDC,140nsat10VDC,100nsat15VDC |
| Quiescent Current | 20µA |
| Operating Temperature Range | -55°Cto125°C |
| Package Type | DIP-16 |
| Number of Channels | 4 |
| Data Rate | 8Mbps |

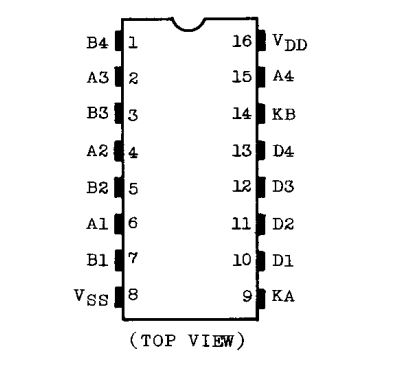

Pin Configuration:
Applications:
Applications:- Data multiplexing in digital communication systems.
- Shift-right/shift-left registers for data manipulation.
- True/complement selection in arithmetic circuits.
- AND/OR/Exclusive-OR logic implementation.
- Logic selection gates in control systems.
- Signal routing in microcontroller-based projects.
