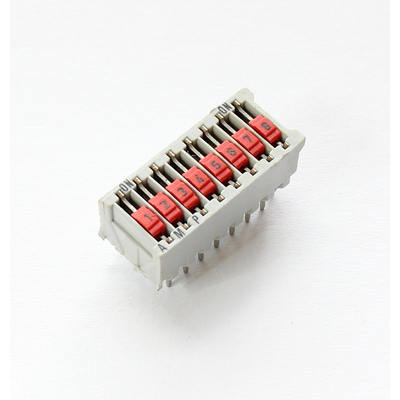

TE DIP Switch 8 Way
This is a an 8-position, through-hole DIP switch. It features a slide (standard) actuator for easy operation and is designed for use in a variety of electronic circuits. The switch is a Single Pole Single Throw (SPST) configuration, making it ideal for simple on-off switching functions.
Features
- 8 Positions: Allows for up to 256 different combinations.
- Slide Actuator: Standard slide actuator for easy and intuitive operation.
- Raised Actuator Level: The raised design makes it easy to access and change switch positions.
- Long Life: With a mechanical and electrical life of 2,000 cycles, this switch is built for durability.
- Through-Hole Mounting: Designed for easy and secure mounting on printed circuit boards.
Specifications
| Circuit | SPST |
| Number of Positions | 8 |
| Number of Pins | 16 |
| Current Rating (Amps) | 25mA |
| Voltage Rating | 50VDC |
| Actuator Type | Slide (Standard) |
| Actuator Level | Raised |
| Height Above Board | 8.50 mm |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Pitch | 2.54 mm, Full |
| Operating Temperature | -25°C ~ 70°C |
| Body Material | Polyamide (PA), Nylon, Glass Filled |
| Length | 22.2 mm |
| Mechanical Life | 2,000 Cycles |
| Electrical Life | 2,000 Cycles |
Applications
- Circuit Configuration
- Industrial Controls
- Test Equipment
- Consumer Electronics
