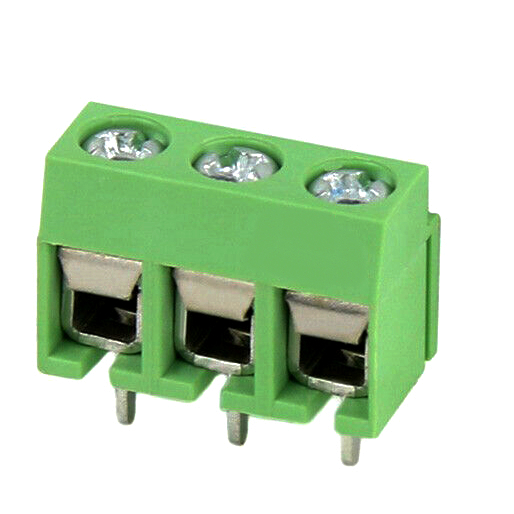

Terminal Block 3 Pins KF126-5.0-3P 8A 300V Green
A compact and reliable 3-pin PCB mount screw terminal block, ideal for creating secure and serviceable wire-to-board connections in your electronic projects.
This KF126-5.0-3P connector features a standard 5.0mm pitch and easy-to-use screw clamps, making it perfect for power inputs, sensor connections, and signal lines.
Features
- Secure Connection: M2.5 steel screws clamp wires firmly, providing a reliable, vibration-resistant connection.
- Easy Installation: Features straight, through-hole pins for simple and strong PCB mounting.
- Standard Pitch: The 5.0mm pin spacing is standard for many power and control applications, making it easy to integrate into your designs.
- High-Quality Materials: Built with a UL94V-0 flame-retardant PA66 housing and tin-plated brass contacts for excellent conductivity and durability.
- Clear Identification: The classic green color allows for easy identification on a crowded PCB.
Specifications
| Attribute | Value |
| Model | KF126-5.0-3P |
| Number of Pins | 3 |
| Pitch | 5.0mm |
| Rated Voltage | 300V |
| Rated Current | 8A |
| Wire Range | 26-14 AWG |
| Housing Material | PA66 (UL94V-0) |
| Contact Material | Brass (Tin-Plated) |
| Screw | M2.5 (Steel, Zinc-Plated) |
| Color | Green |
| Mounting Type | PCB Mount (Through-Hole) |
| Pin Style | Straight Pin |
| Operating Temp. | -40°C to +105°C |
Applications
- Power Supplies
- Industrial Controls
- LED Lighting
- Automation & Robotics
- DIY Electronics
- Audio Equipment

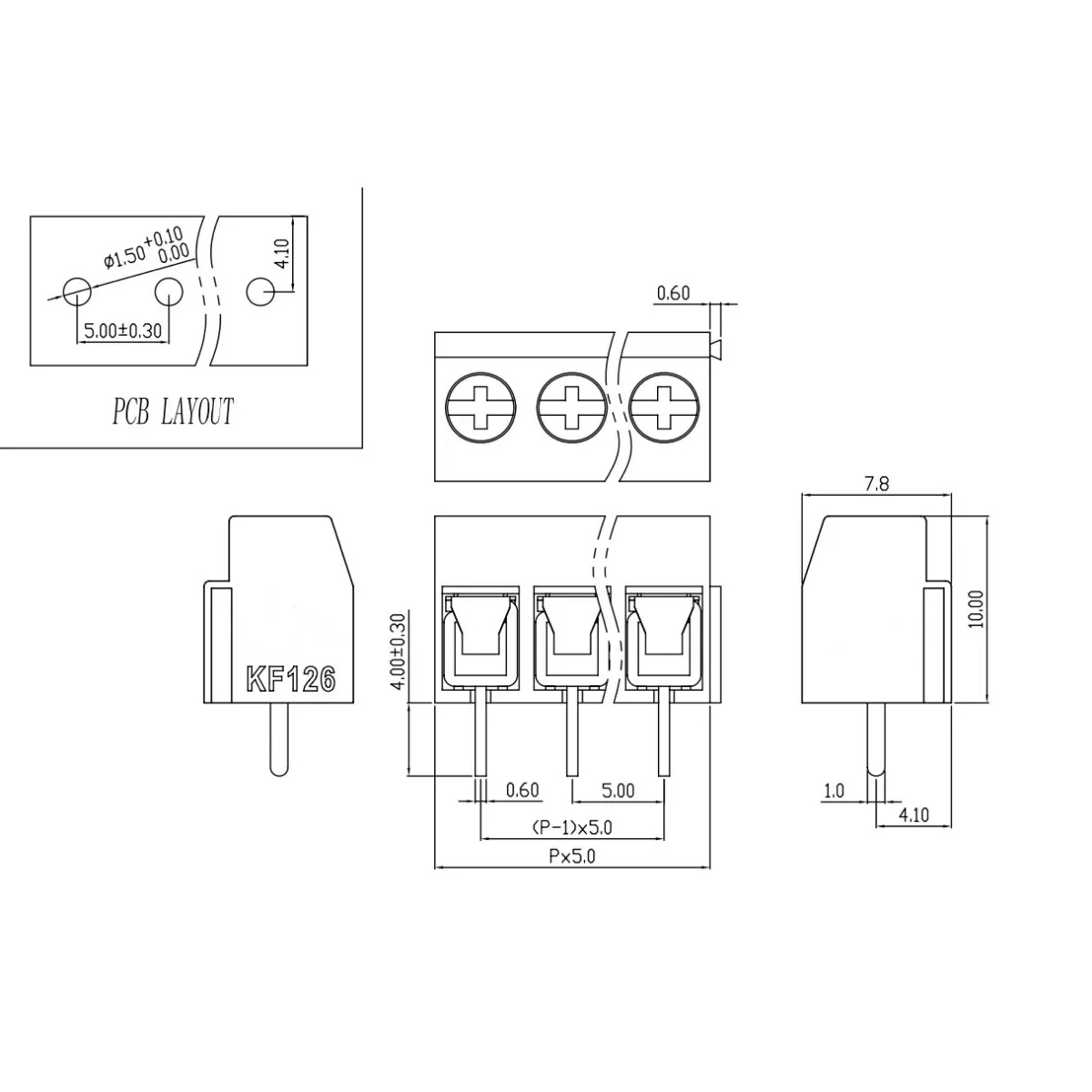

Drawing and Dimensions
