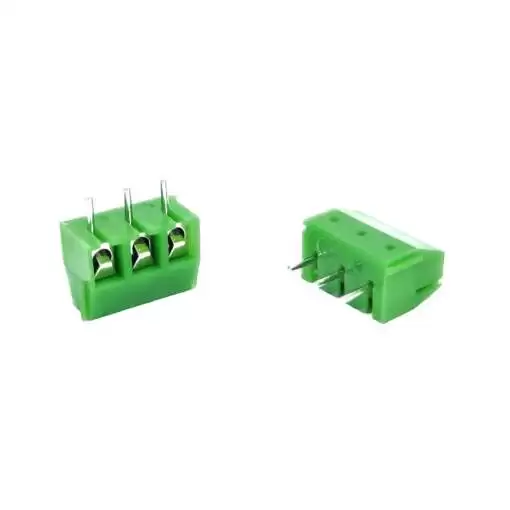

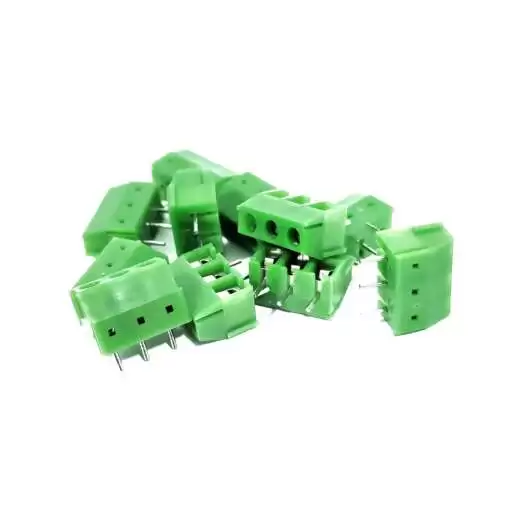

| Manufacturer | Cixi Kefa Elec |
| Mfr. Part # | KF396-3.96-3P |
| Package | Straight,P=3.96mm |
| Datasheet | KF396-3-96-3P Datasheet |
| Description | 10A 0.75 -40℃~+105℃ 300V Green Straight pin 3.96mm 1 18~24 3 Straight,P=3.96mm Screw terminal ROHS |
Specifications
| Attribute | Value |
| Category | Connectors/Screw terminal |
| Datasheet | KF396-3-96-3P Datasheet |
| RoHS | |
| Current Rating (Max) | 10A |
| Wire Gauge – mm? | 0.75 |
| Operating Temperature Range | -40℃~+105℃ |
| Voltage Rating (Max) | 300V |
| Color | Green |
| Mounting Style | Straight pin |
| Pitch | 3.96mm |
| Number of Rows | 1 |
| Wire Gauge – AWG | 18~24 |
| Number of PINs Per Row | 3 |
