Thermocouple Temperature Module MAX6675 with K-Type Sensor

MAX6675 module along with a thermocouple allows for the measurement of high temperatures with high accuracy. It operates in the range of 0 °C to 800 °C, with a voltage from 3 V to 5.5 V. For communication, it uses SPI interface.

Description

MAX6675 module along with a thermocouple allows for the measurement of high temperatures with high accuracy. It operates in the range of 0 °C to 800 °C, with a voltage from 3 V to 5.5 V. For communication, it uses SPI interface.

Specification

• System: MAX6675 – A / D converter
• Supply voltage: 3 V to 5.5 V
• Thermocouple: K type, thread M6
• Measuring range of the temperature: 0 °C to 800 °C
• Resolution: 0,25 °C
• Communications: SPI: SO, CS, SCK, VCC, GND
• The signal can be converted into a digital signal of 12-bit
• Working temperature of the module: -20 °C to 80 °C
• Dimensions of the module: 32 x 16 mm

Package Included:

1 x MAX6675 Module

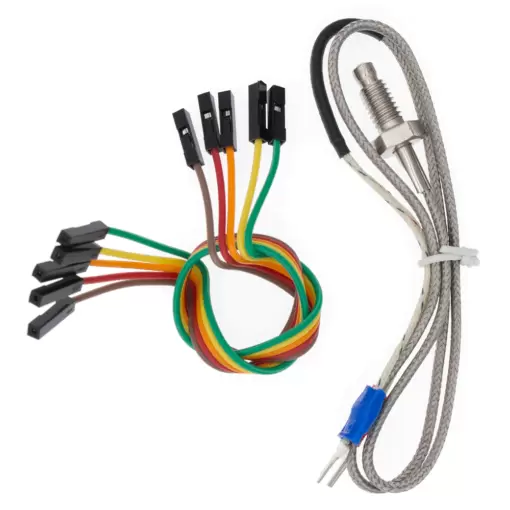

1 x K Type Thermocouple Thermocouple Sensor
1 x (5 x F-F Jumper Cable)
