Features
- High current triac
- Low thermal resistance
- High commutation (4 quadrants) or very high commutation (3 quadrants) capability
Applications
- On/off function in static relays, heating regulation, induction motor starting circuits
- Phase control operations in light dimmers and motor speed controllers
Specifications
| Product Attribute | Attribute Value |
| Manufacturer: | STMicroelectronics |
| Product Category: | Triacs |
| Series: | BTA24 |
| Non Repetitive On-State Current: | 260 A |
| Rated Repetitive Off-State Voltage VDRM: | 700 V |
| Off-State Leakage Current @ VDRM IDRM: | 5 uA |
| On-State Voltage: | 1.5 V |
| Holding Current Ih Max: | 75 mA |
| Gate Trigger Voltage – Vgt: | 1.3 V |
| Gate Trigger Current – Igt: | 50 mA |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 125 C |
| Mounting Style: | Through Hole |

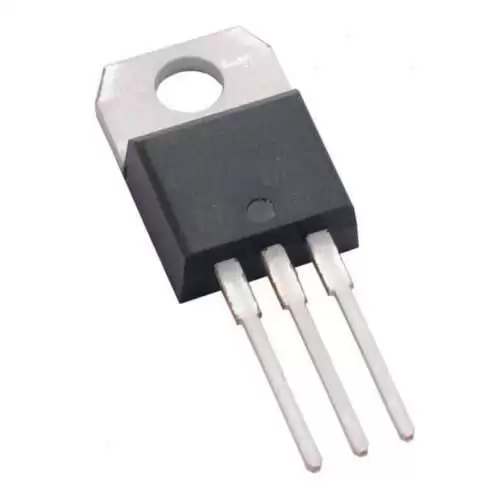

| Package/Case: | TO-220-3 |
| Current Rating: | 25 A |
| Subcategory: | Thyristors |
