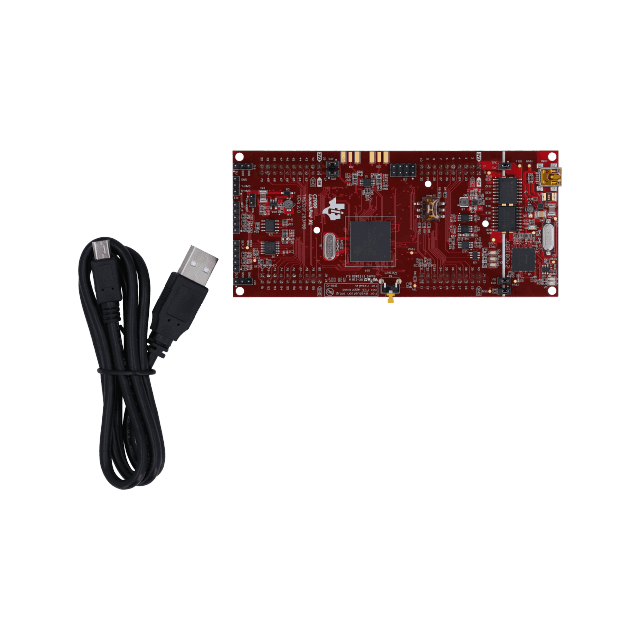

TI C2000 Launchpad XL TMS320F28379D 32-Bit 200MHz Dual Core with Dual Control Law Accelerators
The TI C2000 LaunchPad XL TMS320F28379D is a powerful development platform designed to accelerate the development of motor control, digital power, and industrial automation applications. Powered by the TMS320F28379D microcontroller, this LaunchPad features a dual-core architecture with a 200MHz clock speed, making it ideal for real-time control tasks. It is equipped with two C28x DSP cores, a Control Law Accelerator (CLA), and a floating-point unit (FPU) that enables high-performance, precise control for complex applications.
The microcontroller supports dual control law accelerators for enhanced performance in real-time control, including advanced algorithms such as field-oriented control (FOC), motor control, and power conversion. This LaunchPad is well-suited for industrial applications, including servo systems, motor control, and digital power conversion.
Features:
- MCU: TMS320F28379D Dual-Core Delfino™ (C28x + CLA)
- 200 MHz dual 32-bit CPUs (C28x floating-point)
- Dual real-time control law accelerators (CLAs) for parallel processing
- 1MB Flash, 204KB RAM for high-performance applications
- On-Board Peripherals & Connectivity:
- USB-based XDS110 debug probe (no external debugger needed)
- 40-pin BoosterPack™ headers for expansion modules
- CAN, SPI, I2C, UART, and multiple PWM/ADC interfaces
- 12-bit ADC, 16-channel, 3.5 MSPS for precision sensing
- High-resolution PWM (HRPWM) for advanced control
- Easy-to-Use Development Environment:
- Compatible with Code Composer Studio™ (CCS), MATLAB/Simulink, and Energia™
- Supports controlSUITE™ and C2000Ware™ software libraries
- Power Options:
- USB-powered or external supply (3.3V & 5V headers)
- Additional Features:
- User LEDs, buttons, and analog potentiometer for quick prototyping
- JTAG & serial wire debug (SWD) support
Specifications:
| Parameter | Value |
|---|---|
| MCU Model | TMS320F28379D |
| Core Architecture | DualC28x32-bit |
| Clock Speed | 200MHz |
| Floating Point Unit | IEEE754SinglePrecision |
| Math Accelerators | TMU,VCU-II |
| Control Law Accelerators | DualCLA200MHz |
| Flash Memory | 1MBECC |
| RAM | 204KBECC/Parity |
| ADC Channels | UpTo24 |
| ADC Resolution | 16-bit/12-bit |
| ADC Throughput | 1.1MSPS/3.5MSPS |
| PWM Channels | 24 |
| HRPWM Channels | 16 |
| DAC Outputs | 3×12-bitBuffered |
| GPIO Pins | UpTo169Multiplexed |
| Communication Interfaces | USB2.0,DualCAN,4xSCI,2xI2C,3xSPI,2xMcBSP |
| DMA Channels | 12 |
| EMIFs | Dual |
| Power Supply | 1.2VCore,3.3VIO |
| Debug Interface | XDS100v2USB |
| BoosterPack Headers | 4×20-pin |
Configuration:
Applications:
- Industrial motor control systems.
- Digital power conversion systems (e.g., AC/DC, DC/DC converters).
- Real-time embedded control applications.
- Servo control for robotics and automation.
- High-precision sensing and actuation systems.
- Power-efficient solutions for IoT and smart devices.
Package Include:
- 1x TI C2000 LaunchPad XL TMS320F28379D Development Kit.
- 1x Mini-USB cable for programming and debugging.
- 1x Quick Start Guide.
