TI MSP430 Launch Pad Evaluation Kit F5529LP

TI MSP430 Launch Pad Evaluation Kit F5529LP/ Development Board

The TI MSP430 Launch Pad Evaluation Kit F5529LP is a versatile and cost-effective development platform designed to facilitate exploration and development with the MSP430F5529 USB microcontroller. This kit serves as an ideal entry point for developers interested in leveraging the capabilities of the MSP430 microcontroller family, particularly for applications requiring USB connectivity. Equipped with onboard emulation for programming and debugging, as well as integrated buttons and LEDs for user interaction, the F5529LP provides a seamless and efficient development experience suitable for both novice and experienced developers.

At the core of the kit is the MSP430F5529, a 16-bit microcontroller featuring a 25MHz system clock, 128KB of flash memory, and 8KB of RAM. It supports an extensive array of peripherals, including a 12-bit Successive Approximation Register  Analog-to-Digital Converter , an analog comparator, Direct Memory Access, and multiple serial interfaces such as UART, SPI, and I2C. The integrated USB 2.0 functionality enables the creation of devices that communicate effortlessly with computers or other USB hosts, supporting applications like data transfer, firmware updates, and USB device class implementations.

Features:

• USB 2.0-enabled MSP430F5529 16-bit MCU.
• Up to 25 MHz.
• 128KB Flash and 8KB RAM.
• 12 Bit SAR ADC.
• Various USB device class examples and embedded software libraries available (CDC, HID, MSC)
• eZ-FET lite: Open source onboard debugger with application UART.
• One USB connection for emulator and target via the use of an onboard USB hub.
• USB as power source: 5V and 3.3V through a high efficiency DC/DC converter.
• 40 pin LaunchPad standard leveraging the BoosterPack ecosystem.

Specifications:

Configuration:

Applications:

• USB-based data acquisition systems.
• Low-power embedded systems.
• Sensor nodes and IoT devices.
• Portable medical devices.
• Industrial control systems.
• Educational projects and prototyping.

Package Include:

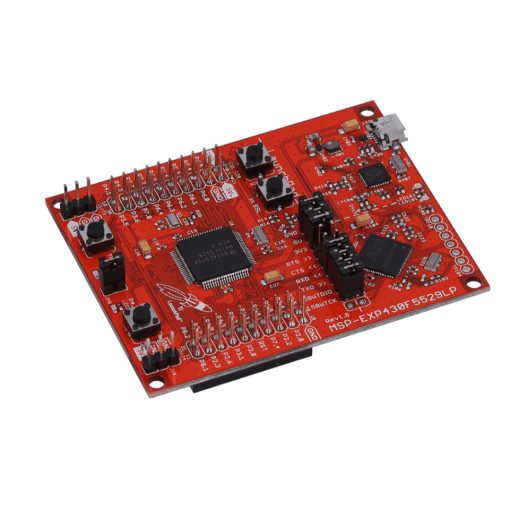

• 1x MSP-EXP430F5529LP LaunchPad.
• 1x Micro USB cable.
• 1x Quick Start Guide.

Documents:

• User guide
• MSP430F5529 Datasheet

Other Resources:

• Code Composer Studio IDE Download
• MSP430Ware Software Package
• TI Resource Explorer for MSP-EXP430F5529LP
