TIL117 Output Optocoupler Transistor DIP-6

TIL117 Output Optocoupler Transistor DIP-6

The TIL117 Output Optocoupler Transistor is an infrared optically coupled device designed for high isolation applications. It consists of an infrared emitting diode and a phototransistor detector, which are packaged in a 6-pin dual-in-line package (DIP-6). This device offers excellent electrical isolation between the input and output, making it ideal for protecting circuits against high voltages or electrical noise. It is used primarily in signal transmission where isolation is required.

This optocoupler features a high isolation voltage of 5000 Vrms, ensuring that it can withstand substantial electrical differences between its input and output sides. Additionally, the TIL117 operates efficiently at a wide temperature range from -55°C to +110°C, making it suitable for various industrial and consumer applications. The device’s design and construction comply with various international safety and quality standards, ensuring its reliability in different environments.

The TIL117 is commonly used in power supply regulators, digital logic inputs, microprocessor interfaces, and other systems requiring electrical isolation. Its versatility, robust construction, and high isolation make it a reliable choice in controlling power and signals in both commercial and industrial applications.

Features:

• High isolation voltage of 5000 Vrms.
• Compact dual-in-line package (DIP-6).
• Operating temperature range from -55°C to +110°C.
• Compliance with EU RoHS and REACH.
• UL and cUL approved.
• VDE, SEMKO, NEMKO, DEMKO, FIMKO, and CQC approved.
• High creepage distance greater than 7.6mm.

Specifications:

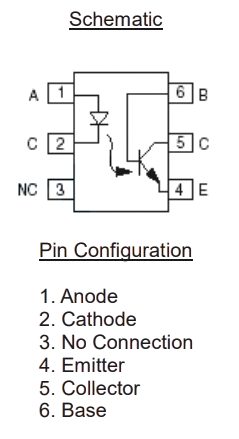

Footprint Diagram:

Applications:

• Power Supply Regulators.
• Digital Logic Inputs.
• Microprocessor Inputs.
• Appliance Systems.
• Industrial Controls.

Package Contents:

• 1x TIL117 Output Optocoupler Transistor DIP-6

Datasheet
