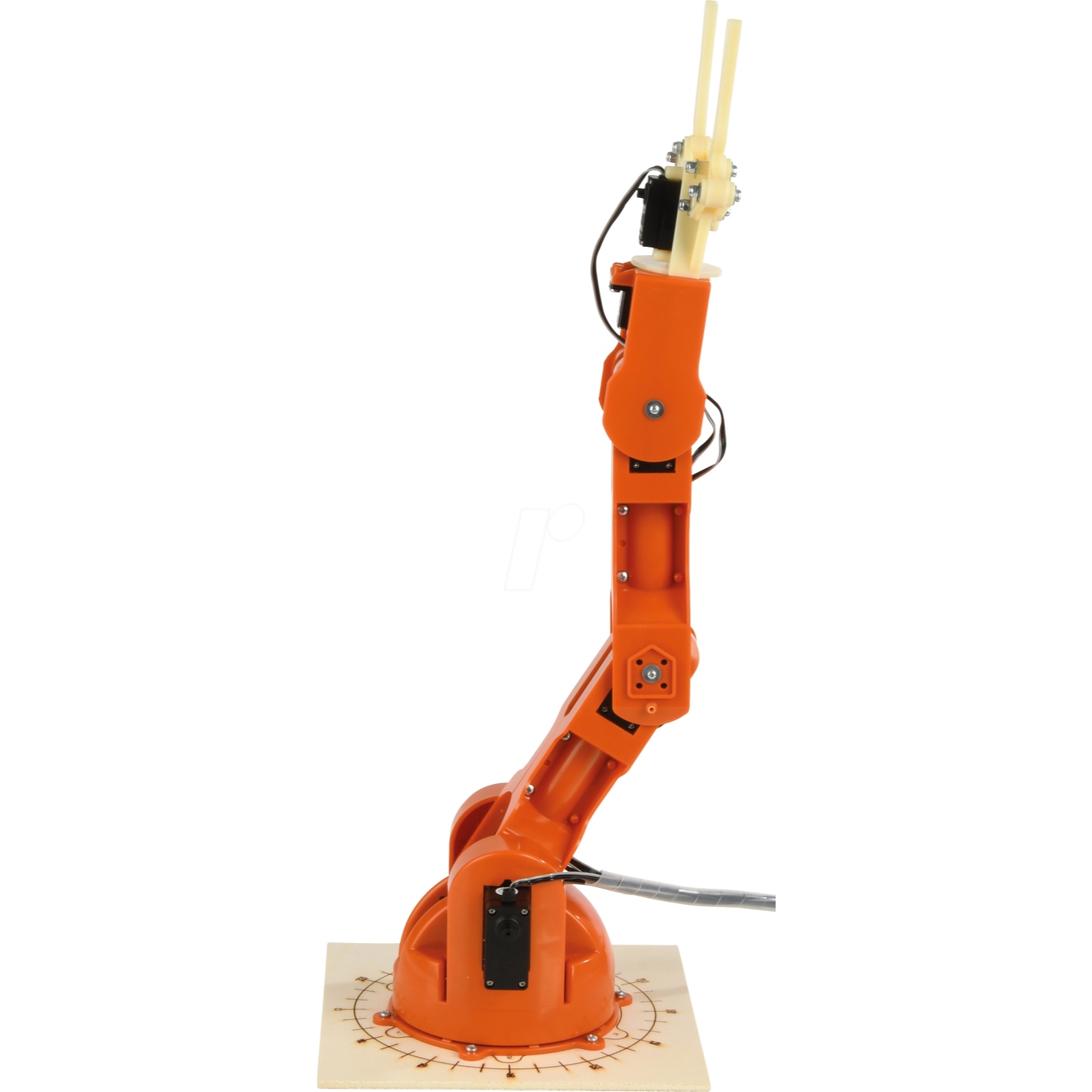

TINKERKIT T050000 Arduino R3 Shield, TinkerKit Arm Robotics Kit
TinkerKit T050000 Arduino R3 Shield and Arm Robotics Kit is a versatile robotic arm kit for Arduino, ideal for learning and building robotic applications.
19,500.00 EGP
Buy NowTINKERKIT T050000 Arduino R3 Shield, TinkerKit Arm Robotics Kit
The TinkerKit T050000 Arduino R3 Shield and Arm Robotics Kit is an advanced robotic arm kit designed to work with Arduino platforms, providing a comprehensive solution for robotics enthusiasts, hobbyists, and educators. This kit includes an R3-compatible shield and a powerful robotic arm, allowing users to explore, learn, and create robotic systems with ease. Whether you are an experienced engineer or just starting your journey in robotics, the TinkerKit Arm Robotics Kit offers endless possibilities for experimentation and innovation.
This kit integrates seamlessly with the Arduino ecosystem, offering an open-source platform for building and programming robotic applications. The Arduino R3 Shield provides a simple and intuitive way to connect the robotic arm to an Arduino board, enabling users to control motors, sensors, and other components with ease. It also allows users to extend the functionality of the robotic arm by adding additional TinkerKit modules, making it highly customizable for a wide range of applications.
Features:
- Compatible with Arduino R3 and other Arduino boards.
- Includes TinkerKit Arm Robotics Kit with motors, servos, and robotic arm components.
- Fully programmable using the Arduino IDE.
- Modular design allows for easy expansion with additional TinkerKit modules.
- Open-source platform for flexible project development.
- Ideal for educational purposes, robotics enthusiasts, and DIY projects.
Specifications:
| Parameter | Value |
| Model Number | T050000 |
| Max Operating Distance | 80cm |
| Max Height | 52cm |
| Base Width | 14cm |
| Gripper Width | 90mm |
| Max Load (32cm reach) | 150g |
| Max Load (Min config) | 400g |
| Supply Voltage | 5VDC |
| Supply Current | 4A (Standard) / 5A (Peak) |
| Kit Weight | 792g |
Servo Technical Specification:
| SpringRC SR431 – Dual Output Servo | |
| Control Signal | PWM Analog |
| Torque | @ 4.8V: 169.5 oz-in (12.2 kg-cm)
@ 6.0V: 201.4 oz-in (14.5 kg-cm) |
| Weight | 2.19 oz (62.0 g) |
| Dimentions | 1.65×0.81×1.56 in (42.0×20.5×39.5 mm) |
| Speed | @ 4.8V: 0.20 sec/60°
@ 6.0V: 0.18 sec/60° |
| Rotation Support | Dual Bearings |
| Gear Material | Metal |
| Rotation Range | 180° |
| Connector Type | J (aka Futaba) |
| SpringRC SR311 | |
| Control Signal | PWM Analog |
| Torque | @ 4.8V: 43.13 oz-in (3.1 kg-cm)
@ 6.0V: 52.86 oz-in (3.8 kg-cm) |
| Weight | 0.95 oz (27.0 g) |
| Dimentions | 1.23×0.65×1.13 in (31.3×16.5×28.6 mm) |
| Speed | @ 4.8V: 0.14 sec/60°
@ 6.0V: 0.12 sec/60° |
| Rotation Support | Dual Bearings |
| Gear Material | Metal |
| Rotation Range | 180° |
| Connector Type | J (aka Futaba) |
Pin Configuration:
| Pin | Function | Description |
| 11 | M1 | Base Motor Control (PWM). |
| 10 | M2 | Shoulder Motor Control (PWM). |
| 9 | M3 | Elbow Motor Control (PWM). |
| 6 | M4 | Wrist Vertical Motor Control (PWM). |
| 5 | M5 | Wrist Rotation Motor Control (PWM). |
| 3 | M6 | Gripper Motor Control (PWM). |
| A0-A5 | I0-I5 | Analog Inputs (for sensors). |
| VIN | Power | Input for Shield Power. |
Applications:
- Educational robotics instruction and STEM learning programs.
- Industrial pick-and-place demonstrations and training.
- Robotic control systems prototyping and algorithm development.
- Sensor integration projects and feedback control research.
- Maker space projects and robotics competitions.
- Research into motion planning and kinematics.
- Automation workflow demonstrations and testing.
- Custom robotic applications with lightweight payloads.
Package Include:
- 21x Plastic structural parts.
- 63x Screws.
- 16x Flat washers.
- 7x Hexagon nuts.
- 2x Springs.
- 2x Servo Motors SR 311.
- 4x Servo Motors SR 431.
- 1x Arduino Compatible Shield (Braccio Shield V4).
- 1x Power Supply 5V, 4A.
- 1x Phillips Screwdriver.
- 1x Spiral Cable Protection Wrap.
Datasheet:
| Weight | 1715 g |
|---|---|
| Dimensions | 380 × 220 × 100 mm |
