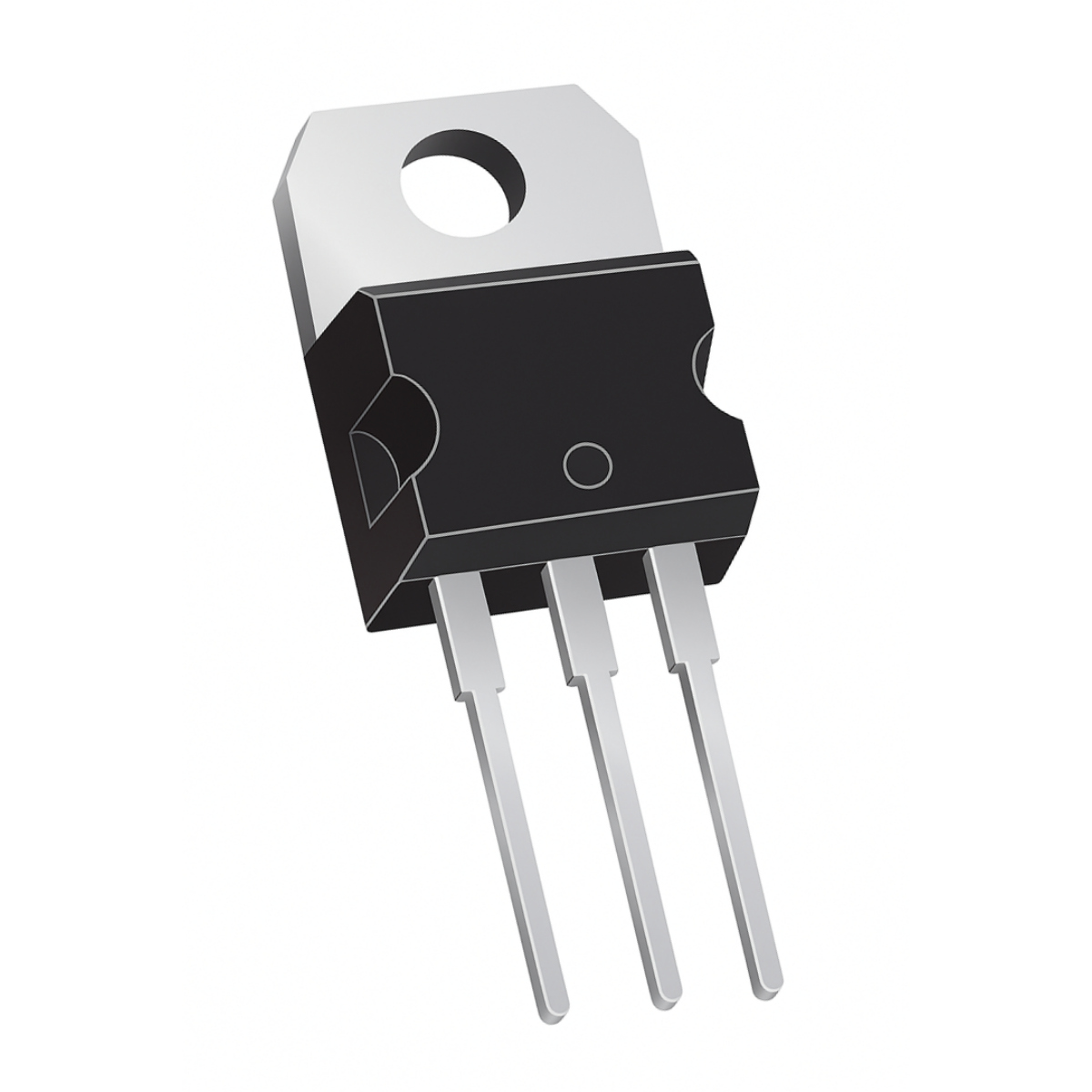

TIP121 NPN 80V,65W,5A Darlington Power Transistor
The TIP121 is an NPN power transistor in a monolithic Darlington configuration. Manufactured using planar technology with a “base island” layout, it provides exceptionally high gain performance coupled with very low saturation voltage. This device is housed in a TO-220 package and is designed for general-purpose linear and switching applications.
✅Features
- High DC Current Gain: Minimum of 1000 at .
- Low Saturation Voltage: as low as 2V at 3A collector current.

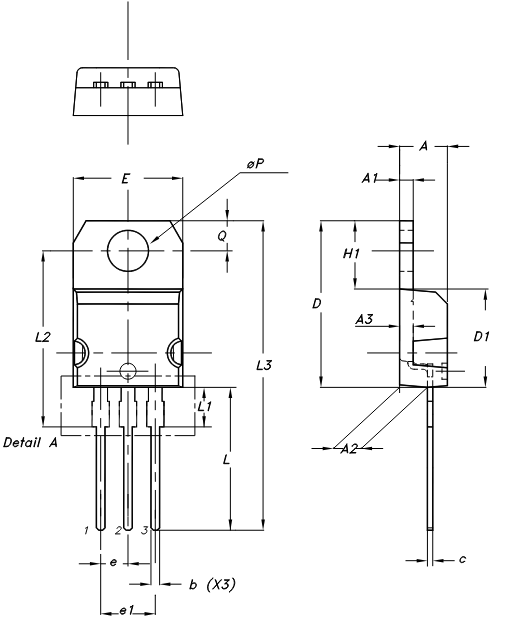

- Robust Package: Industry-standard TO-220 for easy mounting and thermal management.
📜📚Specifications
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Polarity | – | NPN | – |
| Collector-Base Voltage (IE = 0) | VCBO | 80 | V |
| Collector-Emitter Voltage (IB = 0) | VCEO | 80 | V |
| Emitter-Base Voltage (IC = 0) | VEBO | 5 | V |
| Collector Current (Continuous) | IC | 5 | A |
| Collector Peak Current | ICM | 8 | A |
| Base Current | IB | 0.12 | A |
| Total Power Dissipation (TC ≤ 25°C) | PTOT | 65 | W |
| DC Current Gain (IC = 3 A, VCE = 3 V) | hFE | 1000 (Min) | – |
| Collector-Emitter Saturation Voltage (IC = 3 A) | VCE(sat) | 2.0 (Max) | V |
| Operating Junction Temperature | TJ | 150 | °C |
| Storage Temperature Range | Tstg | -65 to 150 | °C |
💻Applications
- General Purpose Switching
- Linear Amplification
- Fast Electronic Switching
