Tip147 PNP Darlington Bipolar Power Transistor 10A, 100V TO-247

Tip147 PNP Darlington Bipolar Power Transistor (10A, 100V) TO-247

The TIP147 is a PNP complementary power Darlington transistor manufactured using planar technology with a specific “base island” layout. Its core is a monolithic Darlington configuration, which means two transistors are integrated onto a single silicon chip. This arrangement connects the emitters and collectors in a way that the current amplified by the first transistor is further amplified by the second, resulting in a single device with a very high overall current gain. This monolithic construction ensures stability and performance consistency.

This transistor is engineered to deliver exceptional high-gain performance while maintaining a very low saturation voltage. The low saturation voltage is critical as it minimizes power loss when the transistor is fully switched on, making it efficient for power control applications. The device is also characterized by its robust voltage and current handling capabilities, designed to operate reliably in demanding industrial environments where linear control and power switching are required.

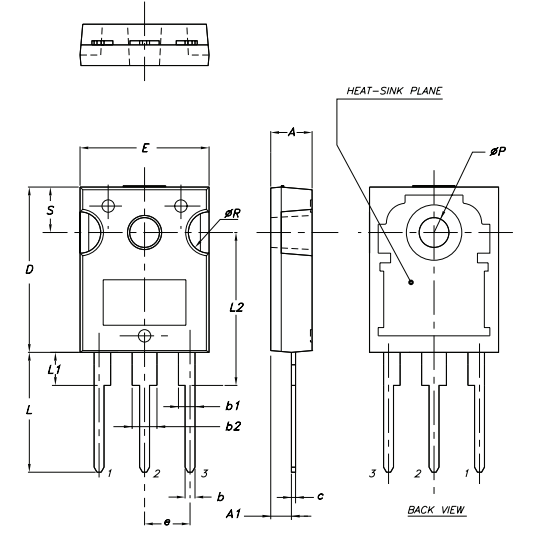

A key feature of the TIP147’s design is the integration of an antiparallel collector-emitter diode. This built-in diode provides a path for reverse current, which is essential for managing inductive kickback when driving loads like motors or solenoids, thereby protecting the transistor from voltage spikes. Housed in a TO-247 package, the device is built for high power dissipation and is easily mounted onto a heat sink to manage thermal performance under high load conditions.

Features:

• Monolithic Darlington configuration.
• Integrated antiparallel collector-emitter diode.
• Exceptional high gain performance.
• Very low saturation voltage.
• Planar technology with “base island” layout.

Specifications:

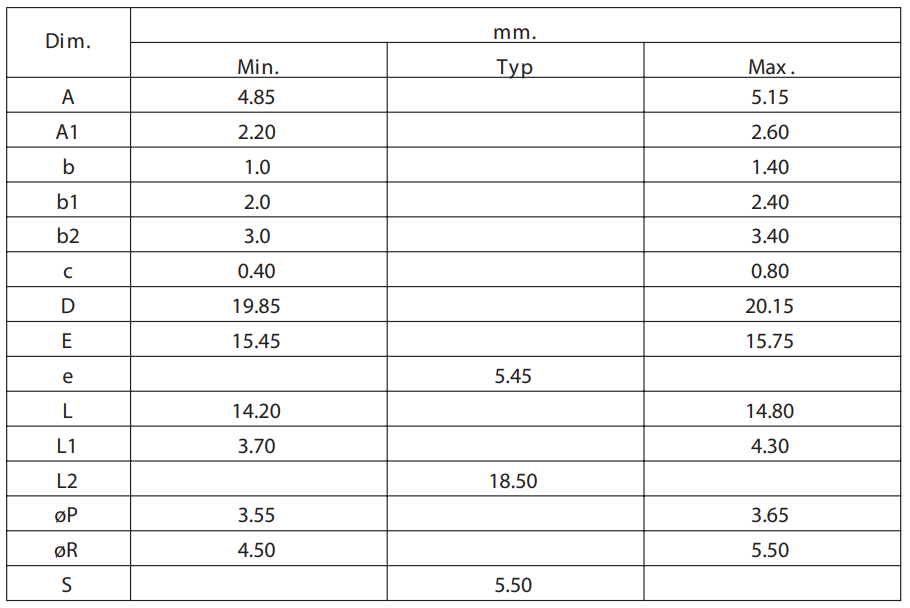

Applications:

• Audio amplifiers.
• Audio amplifier output stages.
• Drive load of up to -10A.
• Motor Drivers.
• And many other general-purpose applications.

Package Contents:

• 1x Tip147 PNP Darlington Bipolar Power Transistor 10A, 100V TO-247

Datasheet
