TIP2955 Bipolar Transistor 60V 15A TO-247AC-3
The TIP2955 is a high-power Bipolar Transistor (Bipolar junction transistor) (BJT) designed for use in switching and linear applications. It is an NPN power transistor with a collector-emitter voltage rating of 60V, a collector current of 15A, and a power dissipation of 90W. The device is housed in a TO-247AC-3 package, which offers excellent thermal performance and ease of mounting for heat dissipation. This transistor is commonly used in power amplifier circuits, voltage regulators, and motor control applications due to its high current handling capability and robust construction. It features low saturation voltage, making it highly efficient for power switching applications. With its high power dissipation rating, it is well-suited for applications that require reliable performance under demanding conditions.
Features:
- High Power Handling Capable of handling up to 90W of power dissipation.
- High Current Capability Supports a collector current (I_C) of 15A, making it suitable for high-power applications.
- Voltage Rating Maximum collector-emitter voltage (V_CEO) of 60V, providing reliable performance in power circuits.
- Low Saturation Voltage (V_CE(sat)) Ensures high efficiency in power switching applications.
- Rugged TO-247AC-3 Package Provides excellent thermal performance and ease of mounting for heat dissipation.
- High Gain (h_FE) Offers good current gain, typically ranging between 20 to 75, improving circuit efficiency.
- Wide Application Range Used in audio amplifiers, motor control, power regulators, and switching circuits.
- Reliable and Durable Designed for robust operation in industrial and consumer electronic applications.

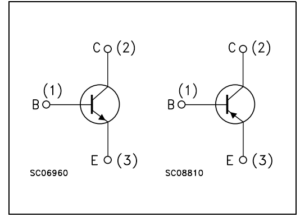

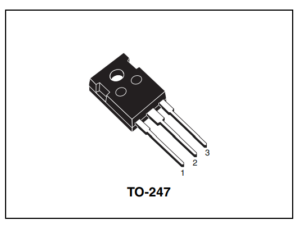

Pin Configuration:
Specification:
| Product Category: | Bipolar Transistors |
| Technology: | Si |
| Series: | TIP2955 |
| Mounting Style: | Through Hole |
| Package/Case: | TO-247-3 |
| Transistor Polarity: | PNP |
| Configuration: | Single |
| Maximum DC Collector Current: | 15 A |
| Collector- Emitter Voltage VCEO Max: | 60 V |
| Collector- Base Voltage VCBO: | 100 V |
| Emitter- Base Voltage VEBO: | 7 V |
| Collector-Emitter Saturation Voltage: | 1 V |
| Pd – Power Dissipation: | 90 W |
| Maximum Operating Temperature: | + 150 C |
| Continuous Collector Current: | 15 A |
| DC Collector/Base Gain hFE Min: | 20 |
| DC Current Gain hFE Max: | 70 |
Applications:
- Power Amplifiers.
- Voltage Regulators.
- Motor Control Circuits.
- Switching Applications.
- UPS and Inverters.
- Battery Chargers.
- Power Supply Circuits.
- Push-Pull Amplifier Circuits.
- Industrial Control Systems.
- Solar Power Converters.
