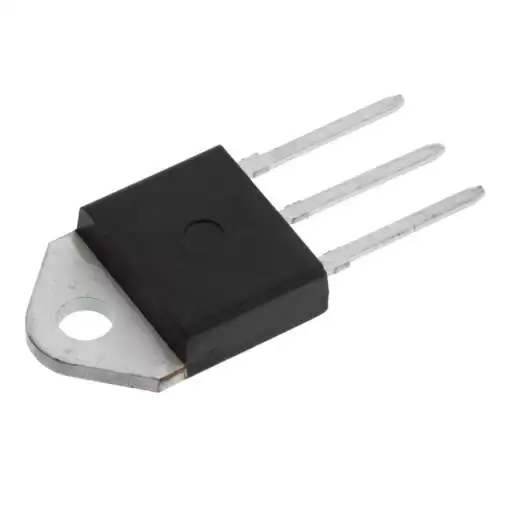

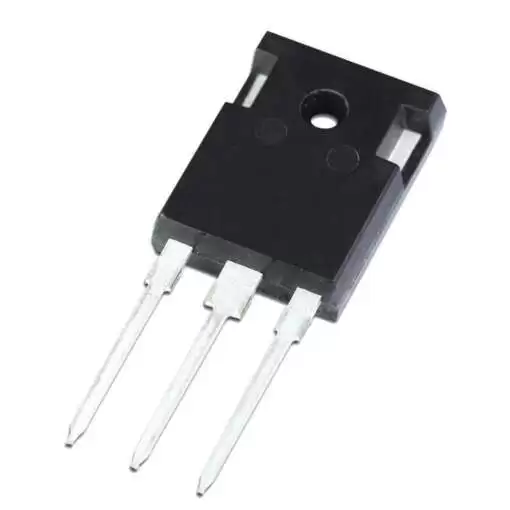

Tip34C PNP Transistor 100V 10A

30.00 EGP

Buy Now
Availability: In Stock
SKU:3496300084241
Product Attributes
TYPE DESCRIPTION
Transistor Type PNP
Current – Collector (Ic) (Max) 10 A
Voltage – Collector Emitter Breakdown (Max) 100 V
Vce Saturation (Max) @ Ib, Ic 4V @ 2.5A, 10A
Current – Collector Cutoff (Max) 700µA
DC Current Gain (hFE) (Min) @ Ic, Vce 20 @ 3A, 4V
Power – Max 80 W
Frequency – Transition 3MHz
Operating Temperature 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-218AC or TO-247 (3P)
TIP34C TO-218AC Datasheet
TIP34C TO-247 (3P) Datasheet
