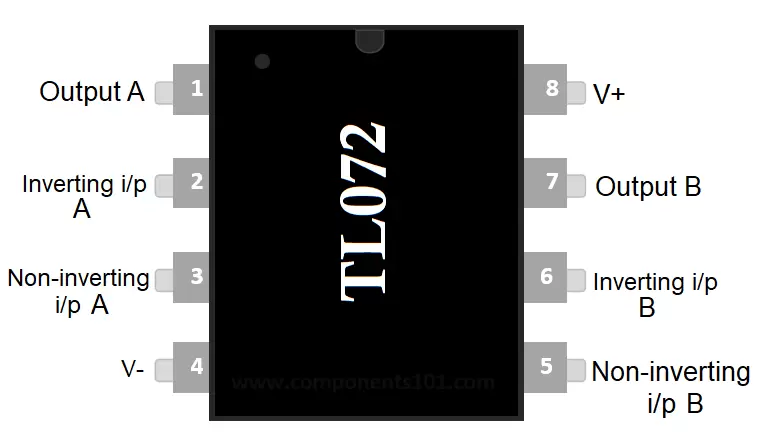

Pin Configuration
| PIN No. | Name | Description |
| 1 | 1OUT | Output of first op-amp |
| 2 | 1IN- | Inverting input for the first op-amp |
| 3 | 1IN+ | Non-inverting input for first op-amp |
| 4 | Vcc- | Ground |
| 5 | 2IN+ | Non-inverting input for first op-amp |
| 6 | 2IN- | Inverting input for the first op-amp |
| 7 | 2OUT | Output of second op-amp |
| 8 | Vcc+ | Supply voltage |
TL072 Features
- It has low power consumption, Input-bias currents, and Offset currents
- Provided with short circuit protection
- Operation of IC is Latch-up-free
- Having two op-amps inside or called a dual op-amp IC.
- Input impedance is high
- Internal Frequency Compensation
- Wide common-mode (up to VCC+) and differential voltage range
Technical Specifications
| Product Attribute | Attribute Value |
| Product Category: | Operational Amplifiers – Op Amps |
| Mounting Style: | Through Hole |
| Package/Case: | PDIP-8 |
| Number of Channels: | 2 Channel |
| Supply Voltage – Max: | 30 V |
| GBP – Gain Bandwidth Product: | 3 MHz |
| Output Current per Channel: | 10 mA |
| SR – Slew Rate: | 13 V/us |
| Vos – Input Offset Voltage: | 10 mV |
| Supply Voltage – Min: | 7 V |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 85 C |
| Ib – Input Bias Current: | 200 pA |
| Operating Supply Current: | 1.4 mA |
| Shutdown: | No Shutdown |
| CMRR – Common Mode Rejection Ratio: | 100 dB |
| en – Input Voltage Noise Density: | 18 nV/sqrt Hz |
| Amplifier Type: | Low Noise Amplifier |
| Dual Supply Voltage: | +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V |
| Height: | 4.57 mm |
| In – Input Noise Current Density: | 0.01 pA/sqrt Hz |
| Input Type: | Rail-to-Rail |
| Maximum Dual Supply Voltage: | +/- 18 V |
| Minimum Dual Supply Voltage: | +/- 3.5 V |
| Operating Supply Voltage: | 7 V to 36 V, +/- 3.5 V to +/- 18 V |
| Product: | Operational Amplifiers |
| Product Type: | Op Amps – Operational Amplifiers |
| Factory Pack Quantity: | 50 |
| Subcategory: | Amplifier ICs |
| Supply Type: | Single, Dual |
| Vcm – Common Mode Voltage: | Negative Rail + 4 V to Positive Rail – 4 V |
| Voltage Gain dB: | 106.02 dB |
Brief Description
These are high-voltage JFET-input operational amplifiers with low noise versions and high slew rates. The Input bias and Offset currents are also low. It’s a dual Op-amp IC means it contains two Op-amp inside. This TL07x series comes with low harmonic distortion and low noise which makes it fit for use where high accuracy is needed. It is also used in the application of audio pre-amplification.
Where to use IC TL072?
TL072 is mainly used where high accuracy is needed with respect to low harmonic and noise, as used for audio pre-amplification. The audio pre-amplification means getting output audio with low noise, interference, and distortion and is also used for controlling the volume, bass, and treble. It also compares the voltage as the other op-amp ICs do. So, can be used as a voltage comparator IC.
How to use IC TL072?
We can use this IC for audio pre-amplification or for better sound quality with having a low price of it with a high accuracy. In the circuit, as the audio input is attached it will receive from the output with low noise and distortion. We can increase the value of resistor R4 due to having high input impedance. R1 is used for impedance balancing, which helps in getting low distortion. R2 and R3 are negative feedback resistors, used for measuring the output signal. If the value of R2 and R3 is placed too high then the noise will increase and if it is too low then the noise will be lower, but it may increase distortion as the load on IC gets high. R6 is used to discharge or empty the C2 flows in order to reduce noise strikes.
