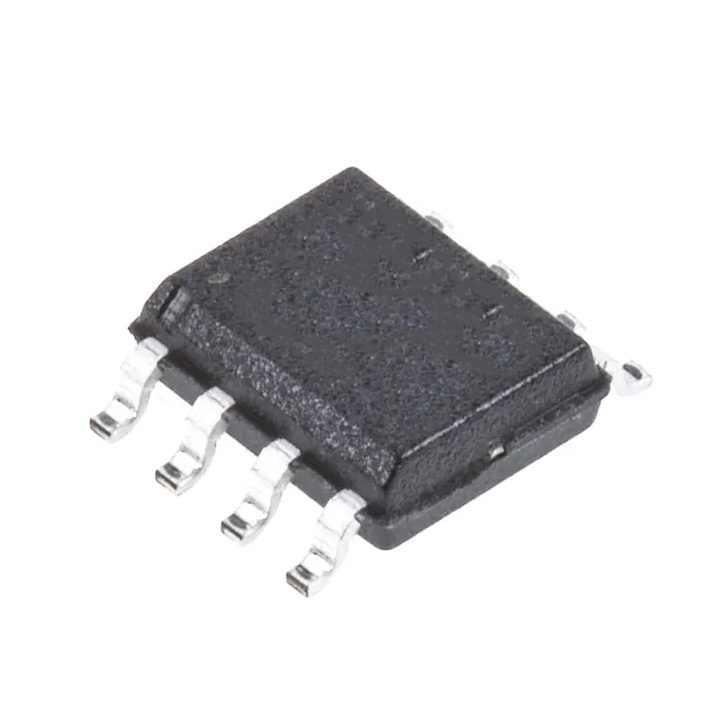

TL7705 SMD IC SOIC-8 Monitors & Reset Circuit

22.50 EGP

Buy Now
Availability: In Stock
SKU:34963000676410

Features

  • Power-On Reset Generator
  • Automatic Reset Generation After Voltage Drop
  • Wide Supply-Voltage Range
  • Precision Voltage Sensor
  • Temperature-Compensated Voltage Reference
  • Externally Adjustable Pulse Duration

Specifications

Product Attribute Attribute Value
Type: Voltage Supervisory
Mounting Style: SMD/SMT
Package/Case: SOIC-8
Threshold Voltage: 4.55 V
Number of Inputs Monitored: 1 Input
Output Type: Active High, Active Low, Open Drain
Manual Reset: No Manual Reset
Watchdog Timers: No Watchdog
Battery Backup Switching: No Backup
Reset Delay Time: Programmable
Supply Voltage – Max: 18 V
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Accuracy: 2 %
Features: Manual Reset
Height: 1.95 mm
Length: 6.2 mm
Operating Supply Current: 1.8 mA
Output Current: – 16 mA
Overvoltage Threshold: 4.6 V
Product Type: Supervisory Circuits
Supply Voltage – Min: 3.5 V
Undervoltage Threshold: 4.5 V

Applications

  • Computers
  • Tablets
  • Smart Phones
  • Servers
  • Music Players

TL7705 Datasheet
