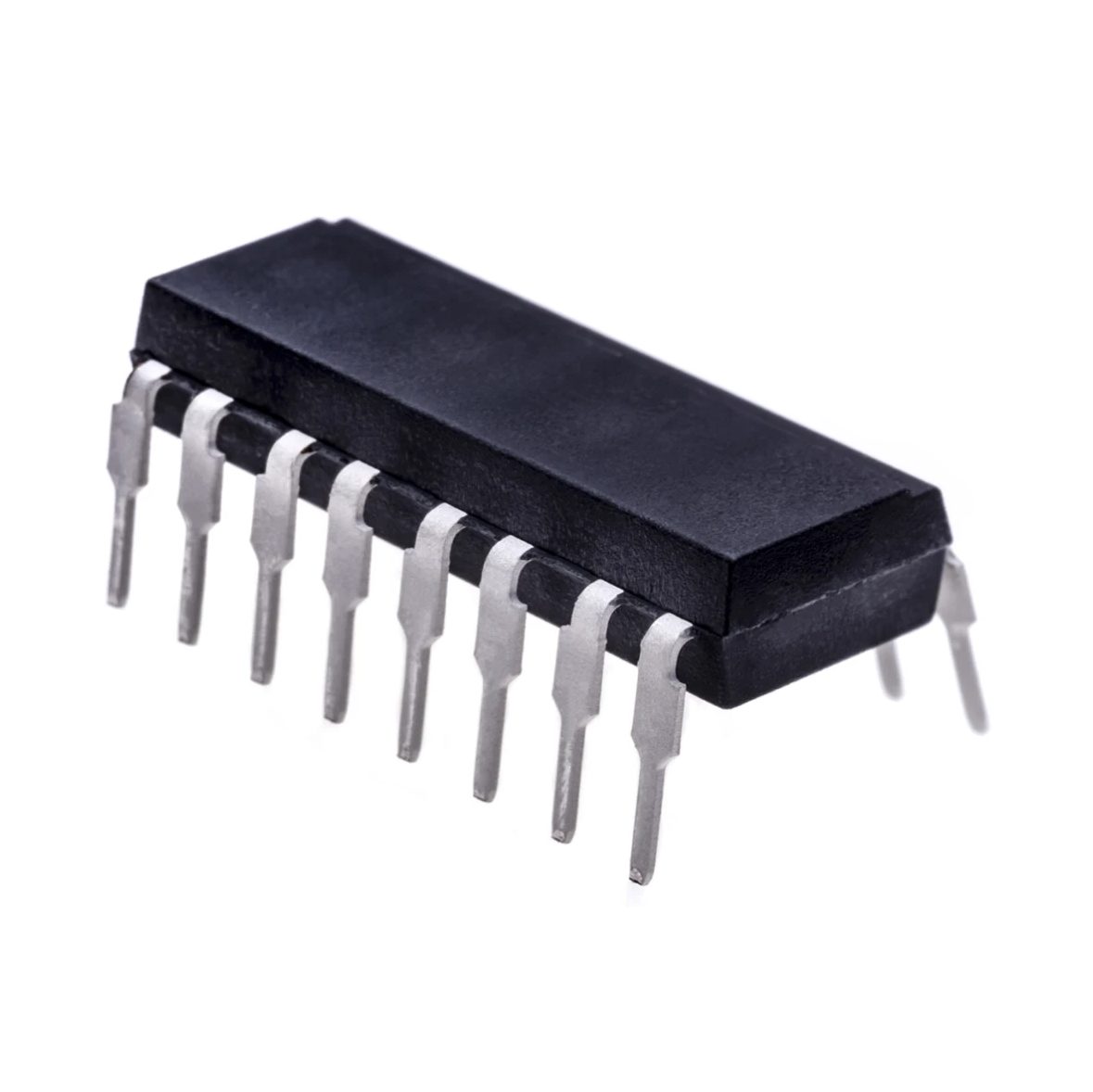

TLP521-4 NPN Phototransistor Output Quad Optocoupler, Through Hole, 16-Pin DIP

70.00 EGP

Buy Now
Availability: In Stock
SKU:5683644260990
Specifications:
Type Description
Category Isolators

Optocouplers, Optoisolators

Transistor, Photovoltaic Output Optoisolators

Number of Channels 4
Voltage – Isolation 5300Vrms
Current Transfer Ratio (Min) 100% @ 5mA
Current Transfer Ratio (Max) 600% @ 5mA
Rise / Fall Time (Typ) 4µs, 3µs
Input Type DC
Output Type Transistor
Voltage – Output (Max) 55V
Voltage – Forward (Vf) (Typ) 1.15V
Current – DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 400mV
Operating Temperature -30°C ~ 100°C
Mounting Type Through Hole
Package / Case 16-DIP
Base Product Number TLP521
TLP521,-2,-4 Datasheet
