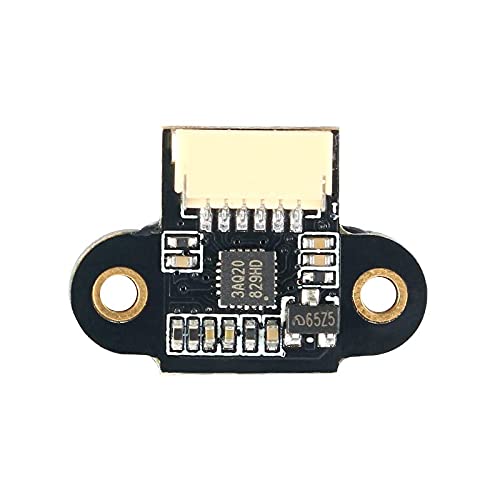

TOF10120 Laser Range Sensor Module 10-180cm UART & I2C Interface
The TOF10120 Laser Range Sensor Module 10-180cm UART & I2C Interface is a high-precision distance measurement device designed for seamless integration into smart electronics and automation systems. Utilizing time-of-flight (TOF) principles, this sensor emits a 940nm laser pulse and calculates distance based on the round-trip time of the reflected light, achieving measurements that are highly accurate and repeatable.
Features:
- Utilizes advanced Time-of-Flight (TOF) technology.
- Measurement range of 10cm to 180cm.
- High-speed ranging with a measurement time under 30ms.
- Performance is independent of object reflectance.
- Operates in high infrared ambient light levels.
- Features advanced optical cross-talk compensation.
- 940nm laser is classified as Class 1 under IEC 60825-1:2014 3rd edition.
- Supports single 3-5VDC power supply.
- Provides both UART and I²C communication interfaces.
- Compact 20×13.2×2.0mm ceramic package.
- Standard solder reflow compatible.
Specifications:
| Parameter | Value |
|---|---|
| Operating Voltage | 3-5VDC |
| Current Consumption | 35mA |
| Measurement Range | 10-180cm |
| Measurement Time | <30ms |
| Communication Interface | UART, I²C |
| UART Baud Rate | 9600bps |
| I²C Address | 0x52 |
| Wavelength | 940nm |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -40°C ~ +85°C |
| Dimensions | 20×13.2×2.0mm |

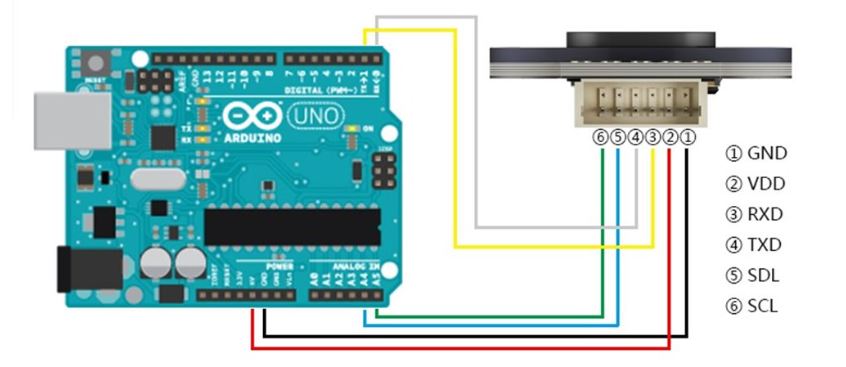

Configuration:
Applications:
- Obstacle detection for robotics and drones.
- High-speed autofocus for video and photography.
- User presence and gesture recognition for smart devices.
- Liquid level monitoring in tanks and containers.
- Object detection for automated systems.
Package Include:
1x TOF10120 Laser Range Sensor Module
