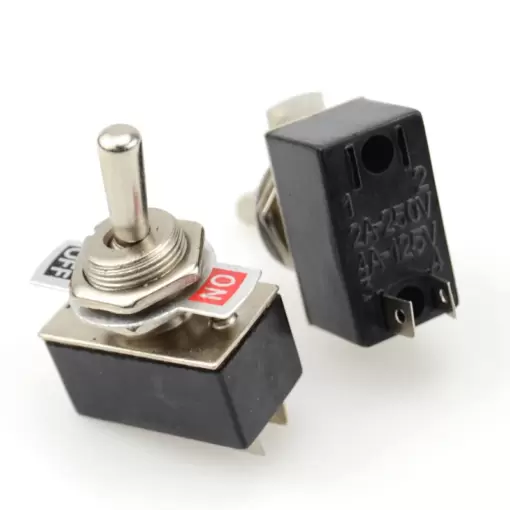

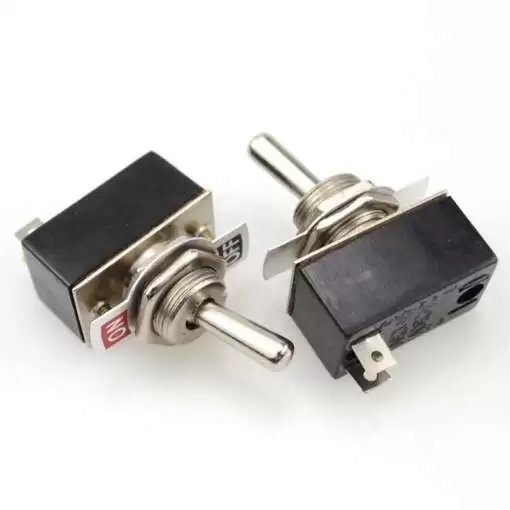

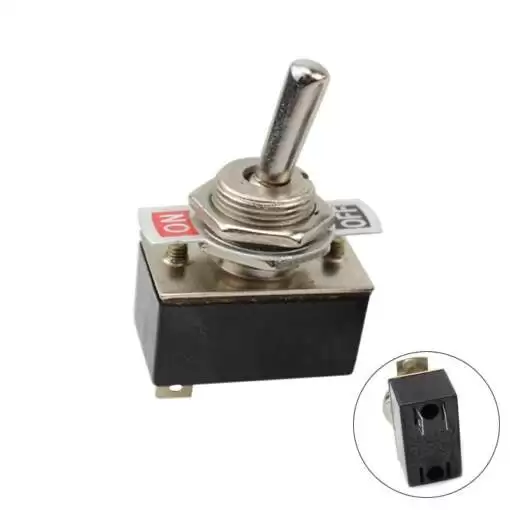

Toggle Switch ON/OFF 2 pin 2A 12mm
The Toggle Switch ON/OFF 2 Pin 2A 12mm is a compact and economical Single-Pole Single-Throw (SPST) panel mount switch engineered for controlling basic electrical circuits in a wide range of consumer, automotive, and light industrial applications. The switch offers a straightforward ON/OFF actuation with two defined positions, enabling the user to easily connect or disconnect power from a load. Designed around a 12 mm panel mounting standard, this toggle interface is suitable for integration into control panels, instrument housings, and custom electronic enclosures where space is limited.
Features:
- SPST configuration with two positions for simple ON/OFF control.
- Compact 12 mm panel cut-out mounting for minimal space requirements.
- Rated for 2A at 250VAC and 4A at 125VAC loads.
- Two solderable terminals for reliable electrical connections.
- Manual latching action with positive positional detent.
Specifications:
| Specification | Description |
|---|---|
| Panel Cut-Out Size | 12 mm |
| Switch Action | On-Off (SPST) |
| Electrical Rating | 2 A @ 250 VAC 4 A @ 125 VAC |
| Number of Pins | 2 |
| Terminal Type | Solder terminals |
| Dimensions (H × W × D) | 42.3 mm × 25 mm × 14 mm |
Applications:
- Power control for small appliances and devices.
- Lighting and auxiliary circuit switching.
- Manual control interfaces on control panels.
- Electronic DIY and prototyping projects.
- Automotive and vehicle accessory switching.
Package Include:
1x Toggle Switch ON/OFF 2 pin 2A 12mm
