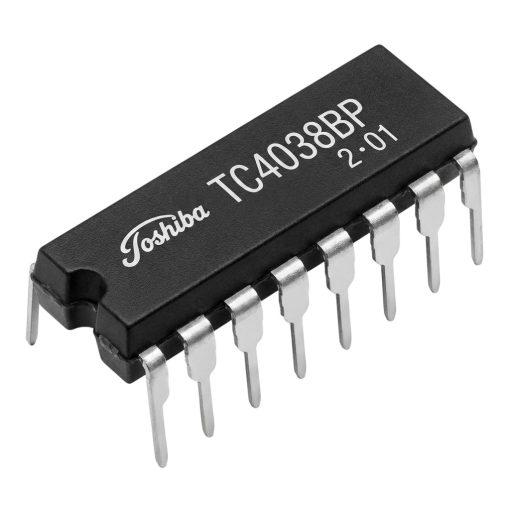

Toshiba TC4038BP DIP-16 IC
Toshiba TC4038BP Triple Serial Adder (Negative Logic) IC. Features falling-edge clock trigger, 3-18V range, and DIP-16 package for digital arithmetic systems.
12.00 EGP
Buy NowToshiba TC4038BP DIP-16 IC
The TC4038BP is a high-performance C2MOS silicon monolithic digital integrated circuit designed as a Triple Serial Adder. This IC contains three independent adder circuits that share a common CLOCK input and CARRY RESET input. Specifically configured as a Negative Logic Adder, it is optimized for digital systems requiring serial arithmetic operations.
✅Features
- Triple Adder Configuration
- Falling Edge Triggering
- Flexible Logic Modes
- Wide Operating Range
- High Speed
📜📚Specifications
| Characteristic | Symbol | Value / Range | Unit |
|---|---|---|---|
| DC Supply Voltage | VDD | 3.0 to 18.0 (Recommended) | V |
| Input Voltage | VIN | 0 to VDD | V |
| Power Dissipation | PD | 300 | mW |
| Operating Temperature | TA | -40 to 85 | °C |
| Max Clock Frequency (Typ. @ 10V) | fCL | 10 | MHz |
| Propagation Delay (Clock to Sum, Typ. @ 10V) | tpLH / tpHL | 95 | ns |
| Input Capacitance | CIN | 5.0 (Typ.) | pF |
| Package Weight | – | 1.0 | g |
💻Applications
- Serial Arithmetic Units
- Digital Signal Processing
- Synchronous Logic Systems
🎁Package Content
- 1 x Toshiba TC4038BP DIP-16 IC
📖DataSheet
