Trimmer Potentiometer 3386P-1-502 5kOhm 0.5W 3 Pins Through Hole

Trimmer Potentiometer 3386P-1-502 5kOhm 0.5W 3 Pins Through Hole

The Trimmer Potentiometer 3386P-1-502 is a high-quality precision component designed to offer adjustable resistance for various electronic applications. With a nominal resistance of 5kOhm and a power rating of 0.5W at 70°C, it is built for fine-tuning and controlling voltage in circuits where precise adjustments are necessary. This potentiometer features a through-hole design, making it compatible with a wide range of electronic boards and systems.

Built with high-grade materials, the 3386P-1-502 is designed for durability in demanding environments. The component features a mechanical travel of 3000±100 and is designed for efficient operation in temperature ranges from -55°C to +125°C. Its stable resistance tolerance of ±10% ensures accurate control for a variety of precision applications. The trimmer is also sealed to offer protection against environmental factors such as moisture and dust, ensuring a long-lasting performance.

The 3386P-1-502 is engineered for reliable performance with excellent resistance to electrical and mechanical stress. It offers low contact resistance variation and meets high standards for electrical endurance, ensuring that it continues to perform accurately over time. The potentiometer is also designed to withstand impacts and vibrations, which makes it suitable for use in rugged and industrial environments where precision is essential.

Features:

• High Precision: Offers precise resistance adjustment with a tolerance of ±10%.
• Durable Construction: Built to endure mechanical and environmental stress.
• Wide Temperature Range: Operates efficiently between -55°C and +125°C.
• Long Mechanical Life: Rated for 3000±100 mechanical cycles.
• Low Contact Resistance Variation: Ensures stable performance over time.
• Electrical Endurance: Withstands 0.5W for 1000 hours at 70°C without significant change in resistance.

Specifications:

Pinout Diagram:

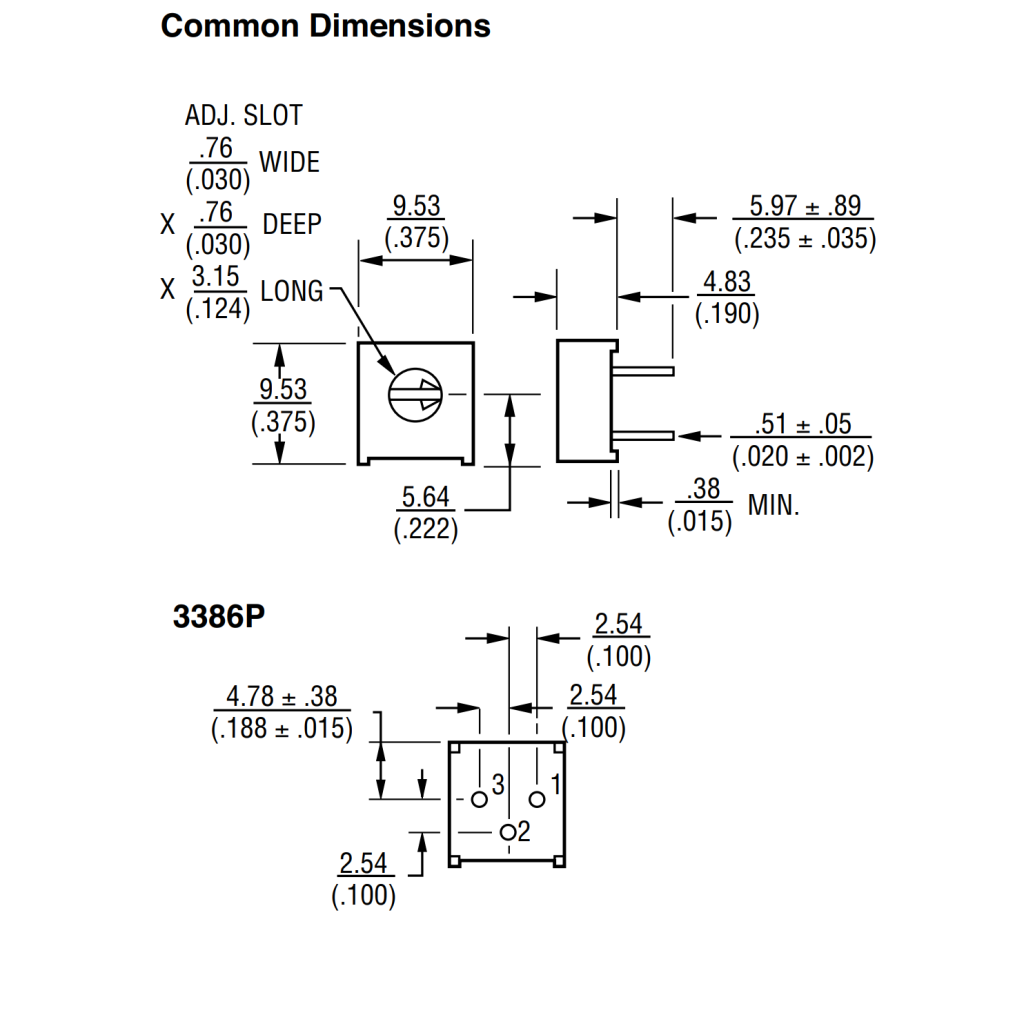

Footprint:

Applications:

• Voltage Adjustment.
• Signal Tuning.
• Audio Equipment Calibration.
• Power Supply Regulation.
• Measurement Instruments.

Package Contents:

• 1x Trimmer Potentiometer 3386P-1-502 5kOhm 0.5W 3 Pins Through Hole

Datasheet
