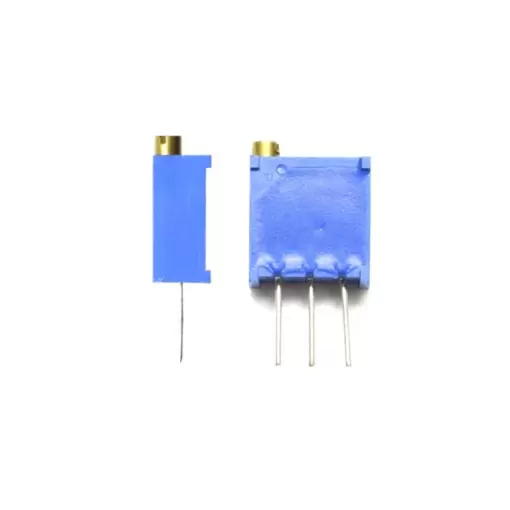

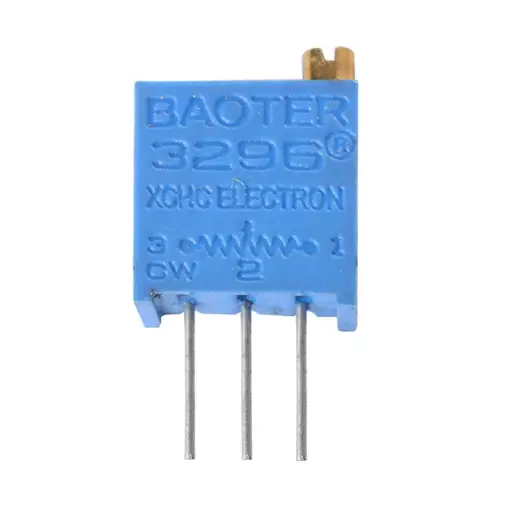

Precision Multi-Turn 50KΩ Trimmer Potentiometer 3296W-1-503 for Fine Adjustment
Features:
- Multi-Turn Adjustment: Offers precise control with multiple turns, perfect for fine-tuning.
- High-Quality Design: Reliable and durable for consistent performance.
- 50KΩ Resistance: Provides accurate and stable resistance for adjustable circuits.
- 0.5W Power Rating: Suitable for moderate power applications.
- 3 Pins Through-Hole Mounting: Easy integration into circuits with standard through-hole placement.
- Wide Application: Ideal for use in precision adjustment, calibration, and signal processing.
Specifications
| Physical | |
| Color | Blue |
| Contact Plating | Lead, Tin |
| Mount | Panel, Through Hole |
| Technical | |
| Composition | Cermet |
| Max Operating Temperature | 125 °C |
| Max Power Dissipation | 500 mW |
| Military Standard | Not |
| Min Operating Temperature | -55 °C |
| Number of Turns | 25 |
| Power Rating | 500 mW |
| Resistance | 50 kΩ |
| Taper | Linear |
| Temperature Coefficient | 100 ppm/°C |
| Termination | Pin |
| Tolerance | 10 % |
| Voltage Rating (DC) | 500 V |
Applications:
- Calibration: Ideal for precision adjustments in electronic calibration processes.
- Signal Processing: Perfect for fine control of signals in various devices.
- Audio Equipment: Commonly used for fine-tuning audio systems, mixers, and amplifiers.
- Testing and Prototyping: Essential for adjusting resistance during testing and circuit development.
