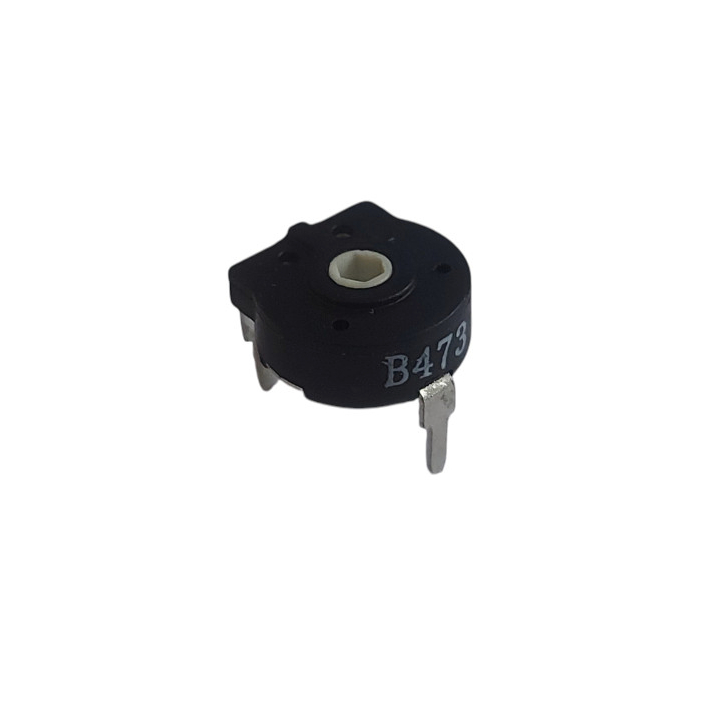

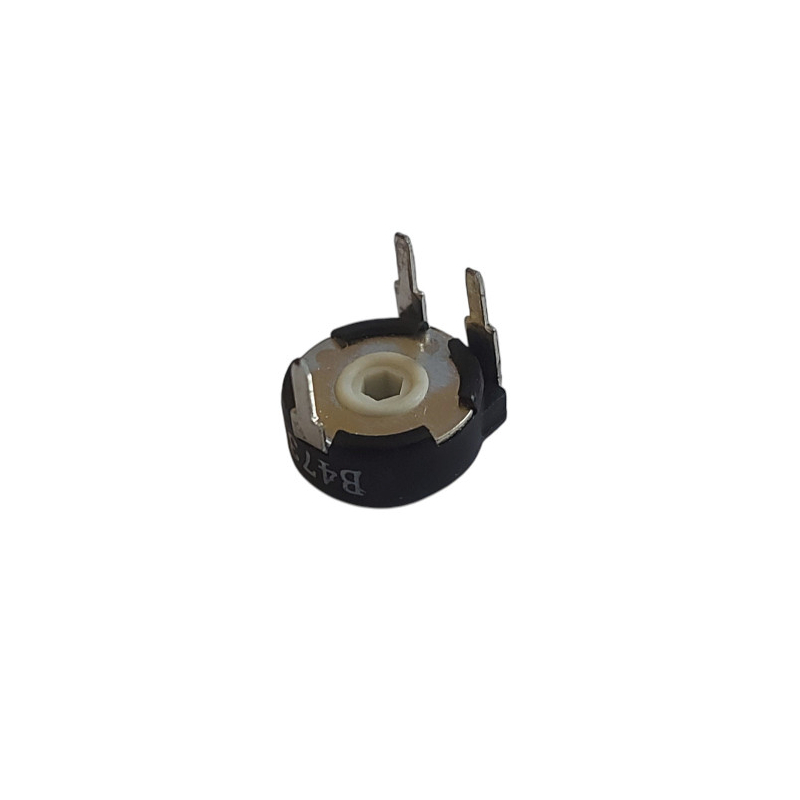

Trimmer Potentiometer PT10M-V10 10mm 47kΩ 3 Pins Through Hole
Compact 10mm trimmer potentiometer with 47kΩ resistance, through-hole mounting, and top adjustment. Ideal for precise circuit calibration and tuning.
4.00 EGP
Buy NowTrimmer Potentiometer PT10M-V10 10mm 47kΩ 3 Pins Through Hole
The PT10M-V10 is a high-quality 10mm trimmer potentiometer designed for precise adjustments in electronic circuits. Featuring a resistance value of 47kΩ and through-hole mounting, this component is perfect for printed circuit board (PCB) applications requiring calibration, such as setting bias currents, adjusting reference voltages, or tuning frequencies.
Features
- 10mm diameter trimmer potentiometer
- Resistance value of 47kΩ
- Through-hole mounting with 3 pins
- Shaftless design for top adjustment with a screwdriver
- Excellent linearity up to 3%
- Long lifespan with up to 10,000 cycles
- IP54 protection rating for dust and splash resistance
Specifications
| Specification | Value |
|---|---|
| Resistance | 47kΩ |
| Tolerance | ±20% |
| Power Rating | 0.15W |
| Operating Temperature Range | -25°C to +70°C |
| Mechanical Rotation Angle | 235° ± 5° |
| Electrical Rotation Angle | 220° ± 20 |
| Linearity | ±3% |
| Rotational Life | 10,000 cycles |
| Mounting Type | Through-hole |
| Adjustment Type | Top adjustment |
| Terminal Type | 3 pins |

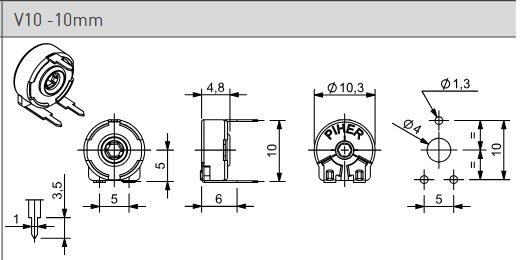

| Body Diameter | 10mm |
Applications
- Calibration of electronic circuits
- Fine-tuning audio equipment
- Tuning in communication devices
- Bias setting in power supplies
- Sensor calibration
- Adjustment in measurement instruments
DataSheet
