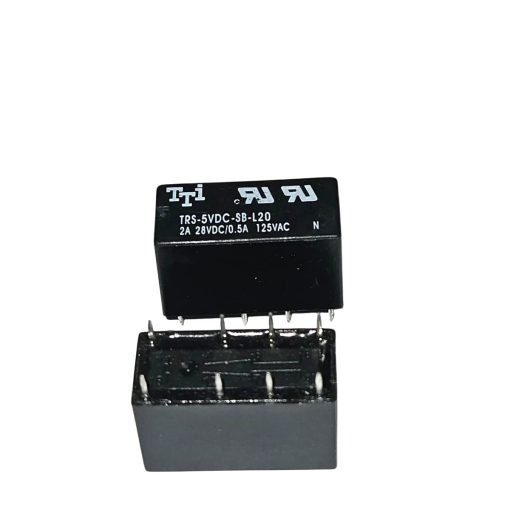

TRS-5VDC-SB-L20 Relay 5V 2A 8Pin
The TRS-5VDC-SB-L20 is a high-performance relay featuring 2 Form C (DPDT) bifurcated-cross-bar contacts, designed for a wide range of AC and DC switching applications. With a nominal coil voltage of 5V and a 2A rated contact capacity, this relay is perfect for integration into telecommunication equipment, domestic appliances, office machinery, and audio devices.
Features:
- 2 Form C (DPDT) bifurcated-cross-bar contacts.
- Compact 8-pin configuration, matching a 16-pin IC socket.
- UL recognized for safety and reliability.
- Sealed version available for protection in harsh environments.
Specifications:
| Parameter | Value |
|---|---|
| Nominal Coil Voltage | 5VDC |
| Coil Power Consumption | 0.15W to 0.50W |
| Rated Contact Capacity | 2A (DC), 0.5A (AC) |
| Max. Switching Voltage | 28VDC/125VAC |
| Max. Switching Current | 2A |
| Contact Resistance | 100mΩ Max |
| Operating Temperature Range | -30°C to +70°C |
| Package Type | 8-pin |
Applications:
- Telecommunication equipment switching.
- Domestic appliance control.
- Office equipment interfaces.
- Audio and signal equipment.
- Low power switching circuits and control systems.
Package Include:
1x Relay TRS-5VDC-SB-L-20, 8-pin DPDT, 5V coil.
