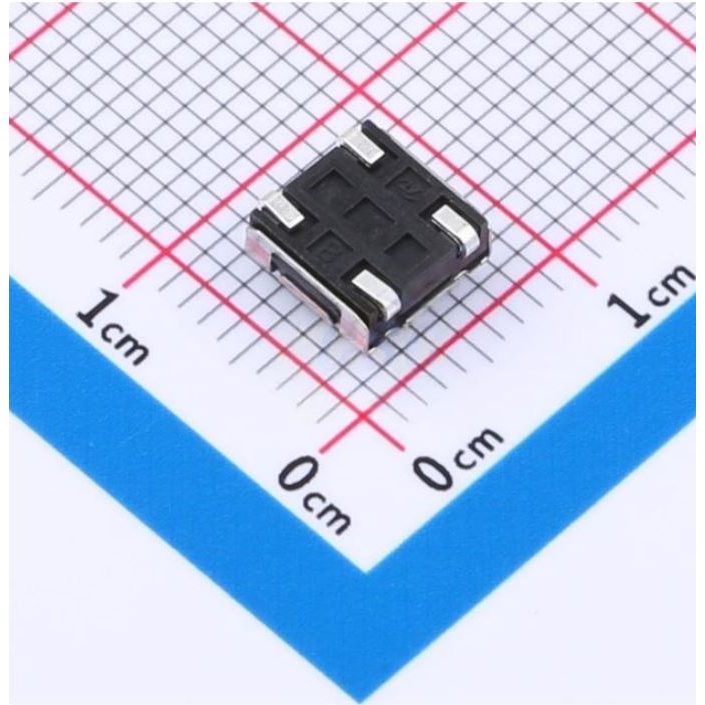

TS-G004206 SMD Tactile Switch 4 Pin 6.2×6.2×3.1mm
| Model | TS-G004206 |
|---|---|
| Description | 4-Pin Round Button Tactile Switch SPST 6.2×6.2×3.1mm |
4.00 EGP
Buy NowTS-G004206 SMD Tactile Switch 4 Pin 6.2×6.2×3.1mm
The TS-G004206 SMD Tactile Switch 4 Pin 6.2×6.2×3.1mm is a high-quality surface-mount tactile switch designed for applications requiring a compact and reliable user interface. With dimensions of 6.2mm x 6.2mm x 3.1mm, this switch is ideal for integration into space-constrained electronic devices.
Features:
- Compact 6.2×6.2×3.1mm SMD package for space-constrained applications.
- 4-pin configuration for secure surface-mount installation.
- Momentary SPST actuation with crisp tactile feedback.
- Rated for 12VDC at 50mA for low-power circuits.
Specifications:
| Attribute | Value |
|---|---|
| Package | SMD |
| With Lamp | No |
| With Bracket | Without Bracket |
| Contact Current | 50mA |
| Length | 6.2mm |
| Life | 100,000 Cycles |
| Voltage Rating | 12V |
| Operating Force | 1.2N |
| Width | 6.2mm |
| Operating Temperature | -30℃~+85℃ |
| Switch Height | 3.1mm |
| Actuator/Cap Color | Blue |
| Actuator Style | Round Button |
| Mounting Type | Surface Mount, Vertical |
| Circuit | SPST |
Dimension & Foot Print :
Applications:
- Input buttons in remote controls and keypads.
- User interfaces in consumer electronics like smartphones and tablets.
- Control panels in automotive and industrial equipment.
- Medical devices requiring precise tactile feedback.
- Portable gadgets for reset or mode selection functions.
