U10A6CIC Ultra Fast Recovery Rectifier Diode 600V 10A

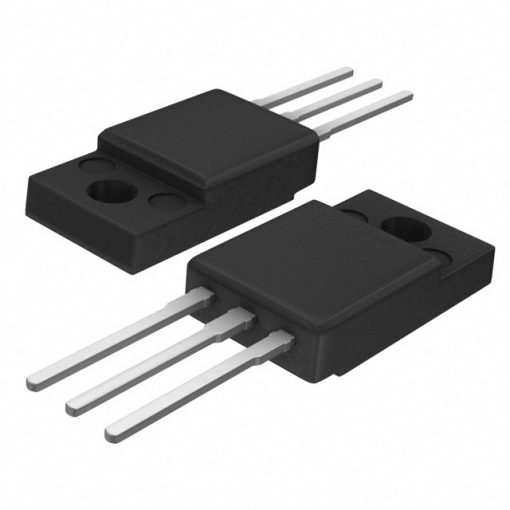

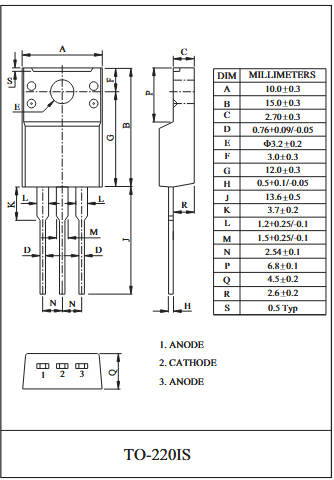

The U10A6CIC is an ultra-fast recovery rectifier diode designed for high efficiency in PFC (Power Factor Correction) circuits. This diode features a TO-220IS package making it suitable for a wide range of demanding applications.
Features
- Ultra-Fast Recovery Time for enhanced efficiency.
- Low Forward Voltage Drop, High Current Capability, and Low Power Loss.
Specifications
| Characteristic | Symbol | Rating | Unit |
|---|---|---|---|
| Maximum Reverse Voltage | VRM | 600 | V |
| Average Output Rectified Current (Tc=94°C) (Note 1) | IO | 10 | A |
| Peak One Cycle Surge Forward Current (Non-Repetitive, tp=10ms) | IFSM | 100 | A |
| Junction Temperature | Tj | 150 | °C |
| Storage Temperature Range | Tstg | -55 to 150 | °C |
Electrical Characteristics (Ta=25°C)
| Characteristic | Symbol | Test Condition | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|---|
| Peak Forward Voltage | VFM | IFM=5A | – | 1.3 | 1.7 | V |
| Reverse Current | IRM | VRM=600V | – | – | 30 | µA |
| Reverse Recovery Time | trr | IF=1.0A, VR=30V, di/dt=-50A/µs | – | 24 | 35 | ns |
| Thermal Resistance | Rth(j-c) | Junction to Case | – | – | 5.0 | °C/W |
Applications
- Switching Power Supply
- Home Appliances, Office Equipment
- Telecommunication, Factory Automation
