U10A7CI Ultra Fast Recovery Rectifier Diode 10A 700V

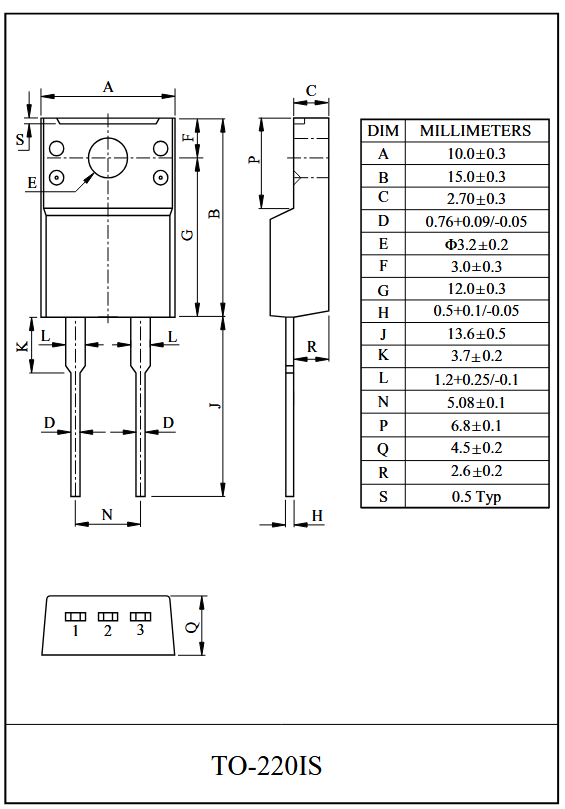

The U10A7CI is an ultra-fast recovery rectifier diode designed for high-efficiency performance in PFC (Power Factor Correction) circuits. This diode features a TO-220IS(2P) package, offering a robust solution for various power applications with its low forward voltage drop, high current capability, and minimal power loss.
Features
- Ultra-Fast Recovery Time for enhanced efficiency.
- Low Forward Voltage Drop, High Current Capability, and Low Power Loss.
Specifications
MAXIMUM RATING
| Characteristic | Symbol | Rating | Unit |
|---|---|---|---|
| Maximum Reverse Voltage | VRM | 700 | V |
| Average Rectified Current | IO | 10 | A |
| Peak One Cycle Surge Forward Current (Non-Repetitive, tp=8.3ms, Sinewave Pulse) | IFSM | 80 | A |
| Junction Temperature | Tj | 150 | °C |
| Storage Temperature Range | Tstg | -55 to 150 | °C |
ELECTRICAL CHARACTERISTICS
| Characteristic | Symbol | Test Condition | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| Peak Forward Voltage | VFM | IFM=10A | – | – | 2.5 | V |
| Reverse Current | IRM | VRM=700V | – | – | 1 | µA |
| Total Capacitance | CT | VR=0V, f=1MHz | – | 90 | – | pF |
| Reverse Recovery Time | trr | IF=1A, VR=30V, di/dt=-50A/µs | – | – | 35 | ns |
| Thermal Resistance | Rth(j-c) | Junction to Case | – | – | 5 | °C/W |
Applications
- Switching Power Supply.
- Home Appliances, Office Equipment.
- Telecommunication, Factory Automation.
