Ublox NEO-6M GPS Module

Ublox NEO-6M GPS Module

Ublox makes good gps. The Ublox NEO-6M gps engine on this board is a quite good one, with high precision binary output. It has also high sensitivity for indoor applications. The gps module have a battery for power backup and EEprom for storing configuration settings.

You can download the u-center software for configuring the gps and changing the settings and much more. It is really good software .

Specifications:

• GPS system: U-blox NEO-6M
• Receiver Type:
  • 50 Channels
  • GPS L1 frequency, C/A Code
  • SBAS: WAAS, EGNOS, MSAS
• Horizontal position accuracy:
  • GPS: 2.5 m
  • SBAS: 2.0 m
  • SBAS + PPP < 1 m (2D, R50)
  • SBAS + PPP < 2 m (3D, R50)
• Maximum speed: 500 m/s
• Acceleration: <4g
• Tracking sensitivity: -161 dBm
• Sensitivity of acquisition: -148 dBm
• Average time of “cold start”: 27 seconds
• The average “warm start” time is 27 s
• Hot start time: 1 sec
• Average recovery time: 0.1s
• Working temperature range: -40 ° C to + 80 ° C
• Power supply range: from +3.5 V to +5.5 V
• Bus voltage UART: 3.3 V
• UART: 9600 baud by default, but is configurable from 4800 to 115200 baud
• 5Hz max update rate
• Built-in RTC backup battery
• Built-in u.FL connector for antenna
• Ceramic antenna
• Power supply: 3V-5V
• Module size 24mmx36mmx4mm

Pin Description

• Vcc-Supply Voltage
• Gnd-Ground pin
• TX and RX-These 2 pins acts as an UART interface for communication.
• PPS (Pulse Per Second) pin is used to time things very accurately.

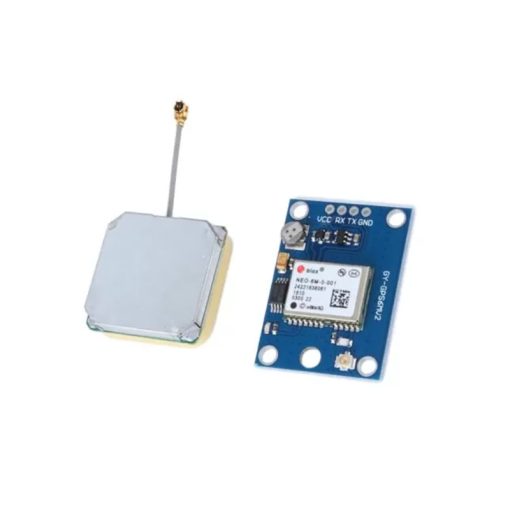

Package Included:

• 1x GY-NEO6M GPS Module
• 1x Ceramic antenna
