Ultrasonic Distance Measuring Sensor RCWL-1605

Product Introduction

RCWL-1605 is a transceiver integrated ultrasonic ranging module designed by our company’s independently developed chip RCWL-9623.

By default, the software is fully compatible with our old version HC-SRO4; It can be set to UART, 1IC or single-bus mode by resistor. 25CM blind area, 4.5m typical farthest range, 2mA ultra low operating current. Using self-developed chip RCWL-9625, make its periphery more concise, wider working voltage (2.8-5.5V), more interface functions.

Main Features

• Professional chip RCCL-9623 is adopted
• Operating voltage: 2.8-5V
• Working current: 2mA
• Supports GPIO, UART, IIC and 1-WIRE output modes. The default output mode is compatible with HC-SR04
• 50ms cycle
• The materials are completely open source and can be downloaded by customers.

Performance Parameters

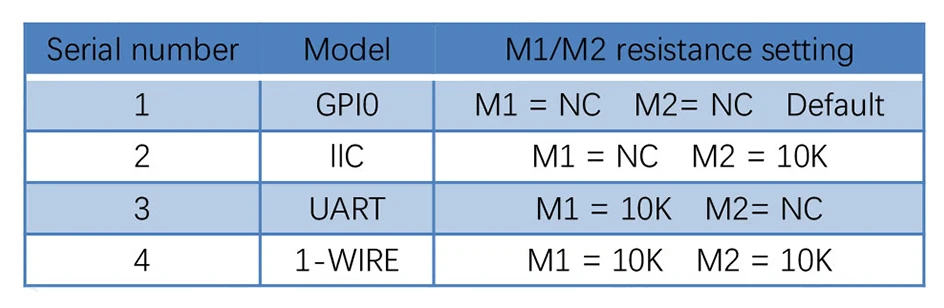

GPIO/UART/IIC/ 1-Wire mode selection:

Typical Applications

• Toys, robot obstacle avoidance
• Liquid level, water level measurement
• Other ranging applications
