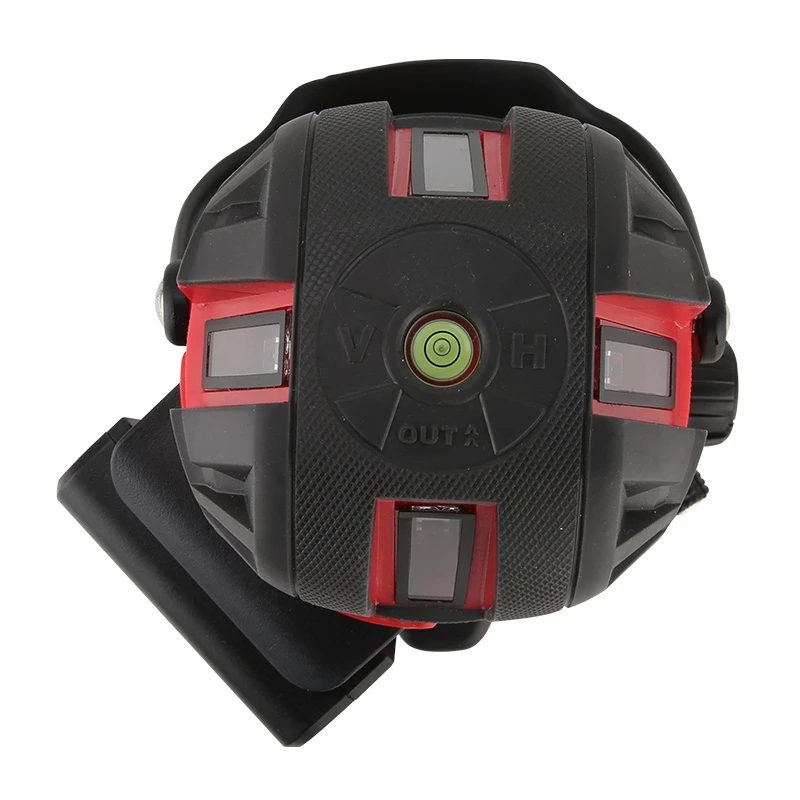

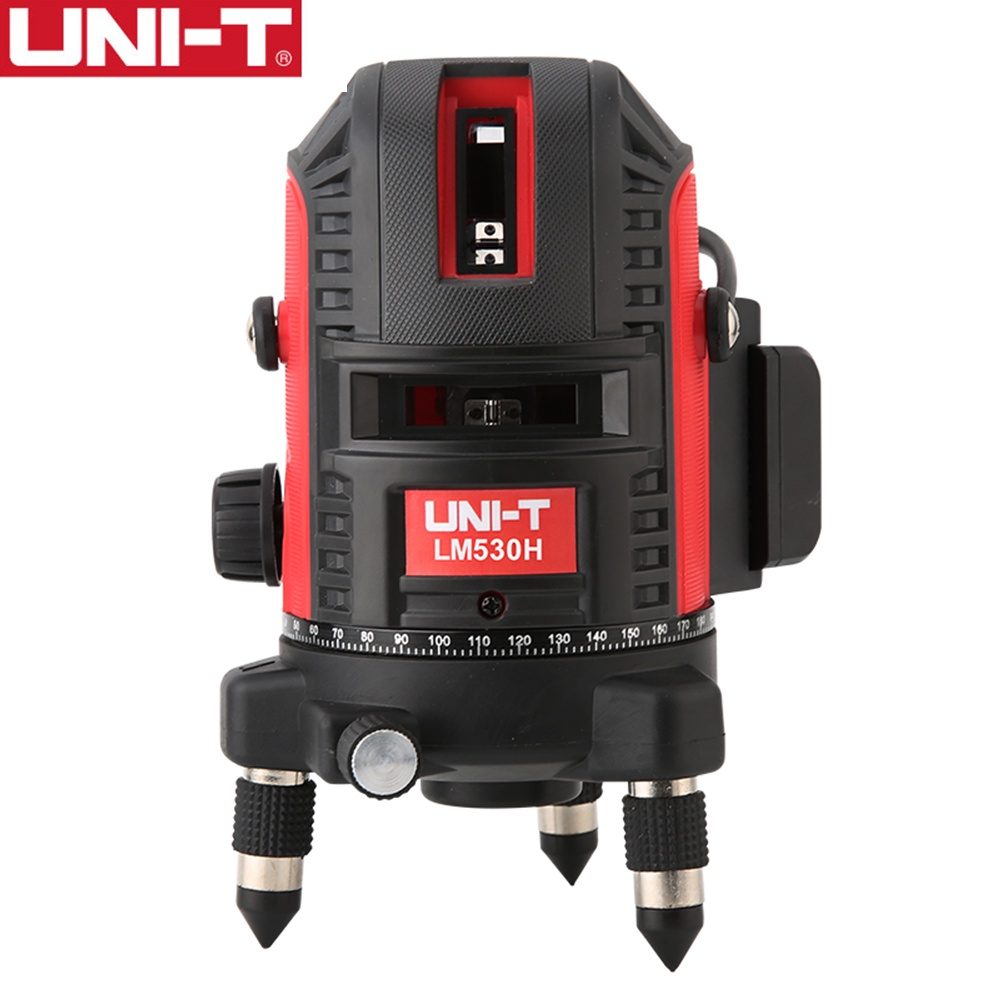

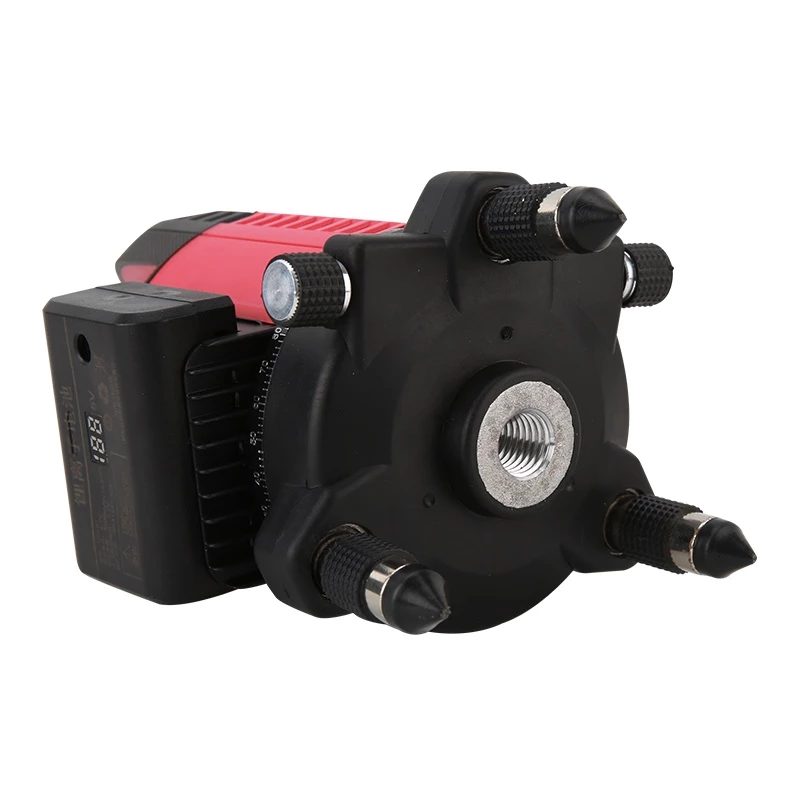

UNI-T LM530H Laser Level

UNI-T LM530H Laser Level

The UNI-T LM530H Laser Level is a high-precision leveling tool designed for professional and DIY applications. It features a red laser beam with high visibility, ensuring accurate horizontal and vertical alignment. With a self-leveling function, durable construction, and an easy-to-use interface, it is perfect for construction, interior decoration, carpentry, and installation tasks. Its long-range capability and reliable performance make it an essential tool for precise measurements in various projects.

Features of LM530H  Laser Level

• High visible laser.
• Self leveling.
• High-capacity Li-ion battery.
• Simultaneous charging and power supplying.
• Multiple Projection Modes Supports horizontal, vertical
• Durable & Robust Design Built to withstand job site conditions.
• Easy Operation Simple controls for quick setup and use.
• Long Working Range  Suitable for both indoor and outdoor applications.
• Tripod Compatibility

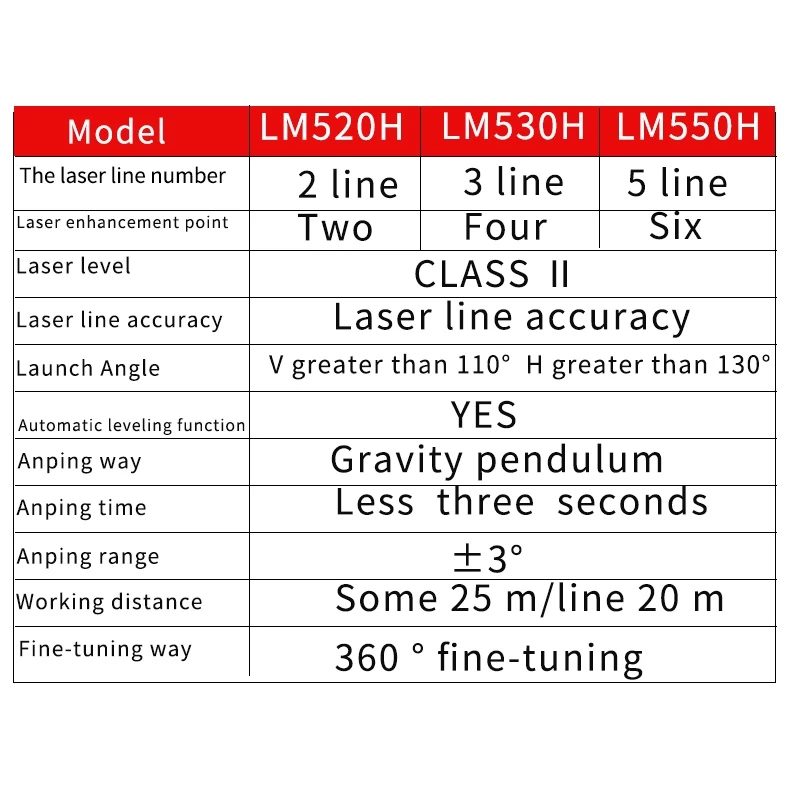

Specifications of UNI-T LM530H Laser Level

• Model:  LM530H
• Display type: Green
• Laser Lines: 3
• Laser Enhancement point: 4
• Laser Wavelength: 635 nm
• Light Source: ≤1mW
• Laser Class: Class ||
• Emission Angle: ≥110° / H≥130°
• Laser Line Accuracy: ± 3mm@10m
• Laser Brightness: High Brightness, Adjustable
• Automatic leveling function: Available
• leveling Range: ± (3°±0.5°)
• leveling Mode: Gravity pendulum
• leveling Time: 3 sec
• Operating Distance Line: point 25m / Line 20m
• Fine Tuning Mode: 360 ° fine-tuning
• Base Graduated Ring: Available
• Thread Hole Size: 5/8′′
• Operating time: >5h (all lasers on)
• Buzzer Alarm: Available
• Diagonal Mode: Available
• Outdoor Mode: Laser Burst Flashing
• Buttons: 3 buttons (H/V/OUT DOOR)
• Operating temperature range: -10°C to 40°C
• Storage temperature range: -20°C to 60°C
• General Characteristics:
  • Power: 4.7V Li-ion battery 3000mAh
  • Product net weight Around: 1kg
  • Product size: 200mm x 132.5mm x 120mm

Applications of UNI-T LM520H / LM530H / LM550H Laser Level:

• Construction & Renovation.
• Interior Decoration.
• Carpentry & Framing.
• Electrical & Plumbing.
• DIY & Home Improvement.

Package Contents of UNI-T LM520H / LM530H / LM550H Laser Level

• 1 X   UNI-T LM530H Laser Level
• 1 X   Calibration Certificate
• 1 X   Safety goggles
• 1 X   Adapter Charger 5V / 1A
• 1 X   USB Cable
• 2 X  4.7V Li-ion battery 3000mAh
• 1 X   Gift Box
• 1 X   Tool Box
• 1 X   User Manual
