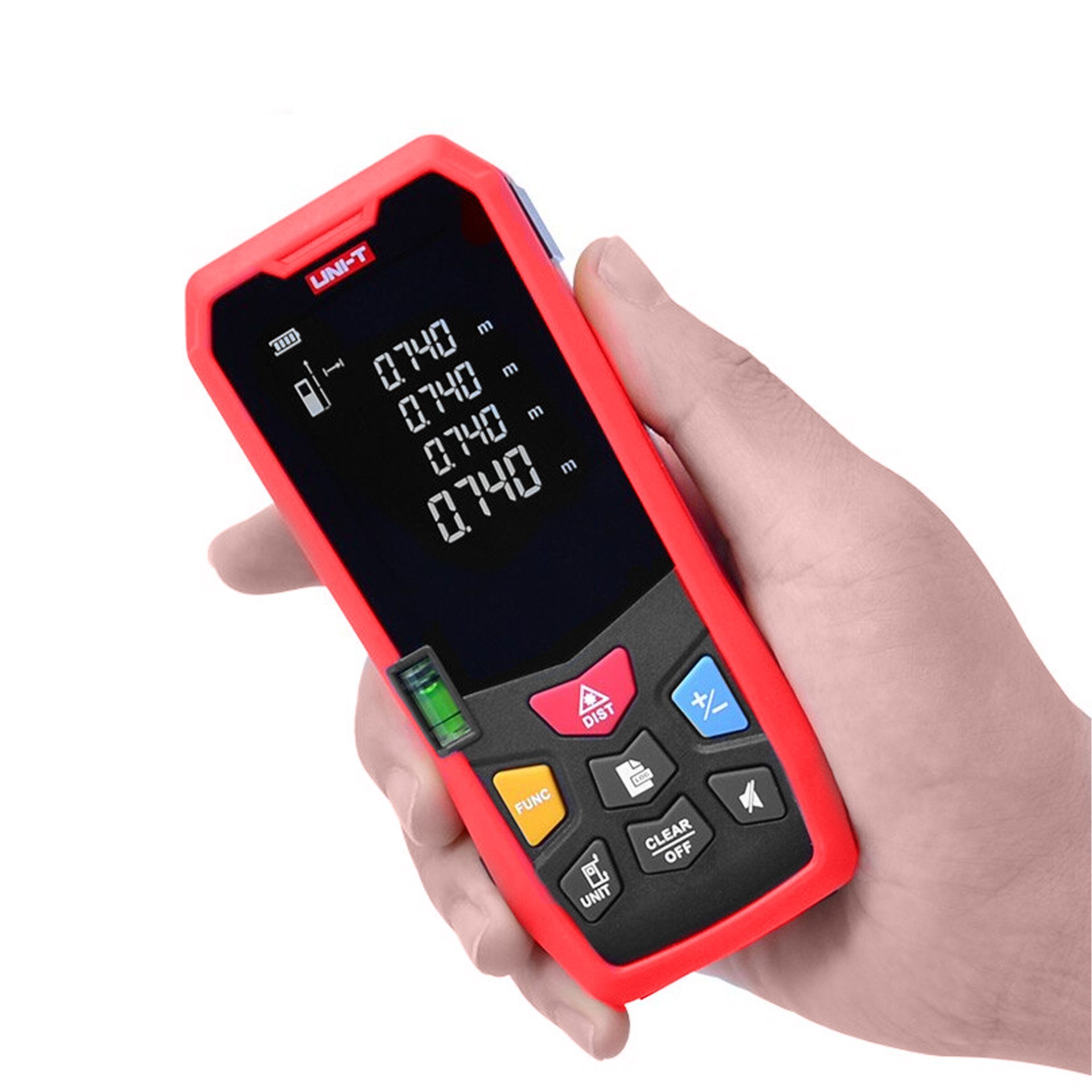

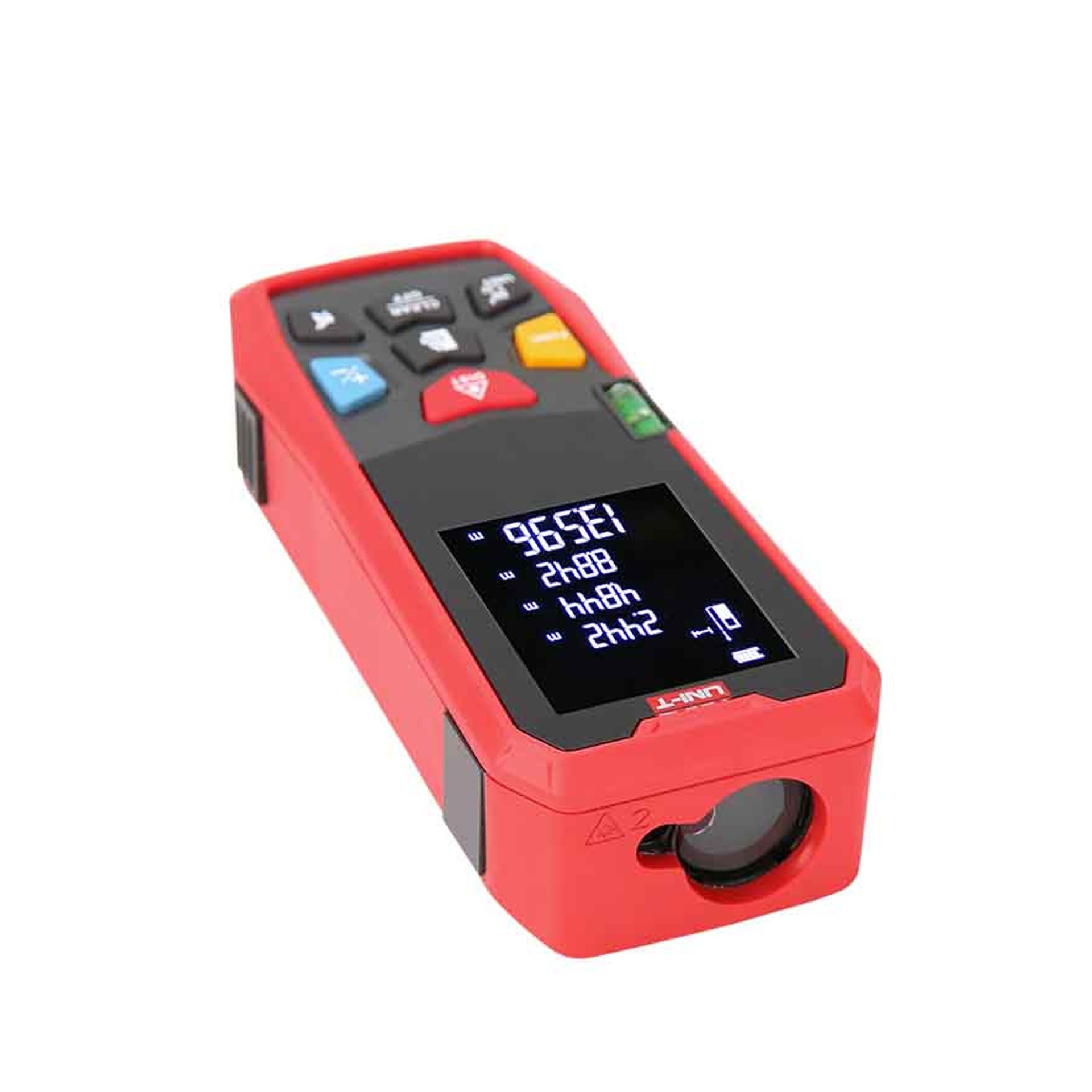

UNI-T LM60 Laser Distance Meter
The UNI-T LM60 is a handheld laser distance meter engineered for quick and precise measurement of linear distances, without reliance on tapes or rulers. Its compact body and intuitive interface allow users to perform distance checks, area or volume calculations, and height/difference measurements with minimal effort. Being laser-based, it enables one-person operation: just point the instrument at a target surface, press the trigger, and read the result.
Internally, the LM60 uses a laser diode to emit a small beam and records the time or phase shift of its reflection to compute distances. The instrument handles instantaneous measurement, continuous scanning, and multi-point readings. Its display updates in real time, allowing users to observe changes or move the device while monitoring distance variation during a single session. Despite its sophistication, the interface remains user-friendly users can quickly switch modes or units, and navigate stored measurements.
In practice, the the LM60 becomes a go-to tool on job sites, in architectural projects, and during interior layout, where speed and accuracy matter. Instead of stretching tapes across long spans or awkward distances, users can stand in one spot, aim, and record. Its portability means it can be carried easily in a tool pouch or pocket, ready for spot measurements whenever needed. Its balance of precision, speed, and simplicity positions it as a practical alternative to traditional measuring tools.
Features:
- Millimeter-level accuracy.
- Real-time readout and auto calculation.
- Multiple measurement modes (single, continuous, max/min, area/volume).
- Built-in physical leveler.
- Data storage (multiple groups).
- Add / subtract measurement functions.
- Auto power-off when idle.
- Auto laser & backlight off.
- Multiple unit display options (m, ft, in).
- Audio indication.
Specifications:
| Specifications | LM60 |
| Display type | EBTN |
| Display size | 2.0-inches |
| Range | 60m |
| Min. display unit | 0.001m |
| Measurement units | m/ft/in |
| Measurement basis | Front/rear |
| Accuracy | ±(2mm+5 x 10-5 D) |
| Laser class | 2 |
| Laser type | 630~670nm, ﹤1mW |
| Features | |
| Single measurement | √ |
| Continuous measurement | √ |
| Max/Min/Area | √ |
| Volume | √ |
| Pythagoras | √ |
| Add/Subtract | √ |
| Data storage | 20 groups |
| Auto power off | 3 minutes without operation |
| Auto laser off | 30s without operation |
| Auto backlight off | 10s without operation |
| Audio indication | √ |
| Battery status display | √ |
| Storage temperature | -20℃~70℃ |
| Operating temperature | 0℃~40℃ |
Applications:
- Interior / exterior distance measurement.
- Area & volume calculation.
- Construction layout & verification.
- Real estate / architectural site surveying.
- Indoor design & renovation measurement.
Package Contents:
- 1x LM60 Laser Distance Meter
- 1x Carrying pouch / case
- 1x Lanyard / strap
- 1x English user manual
- 2x Batteries AAA
