UNI-T LM60T Laser Tape

LM T Series Laser Tapes

LM T Series is a 2-in-1 laser tape with tape and laser distance measurement. It is widely used in home decoration, engineering and construction, and other industries requiring distance measurement.

LM60T:

• Single measurement
• Dual measurement mode
• Portable and compact
• Continuous measurement

Specifications of LM T Series Laser Tapes

Specifications	LM60T
Display type	EBTN-LCD
Display size	1.22-inches
Range	60m laser,5m tape
Measurement units	m/ft/in/’ ”
Measurement basis	front/rear
Accuracy	±2mm
Laser class	Class 2
Laser type	630-670nm, <1mW
Single measurement	√
Continuous measurement	√
Area	√
Volume	√
Pythagoras	√
Power indication	√
Automatic laser shutdown	30 seconds
Auto power off	3 minutes
Data storage	20 sets
Drop test	1 m
General Characteristics
Power	350mAh
Product net weight	300g
Product size	85*56.3*81.5mm

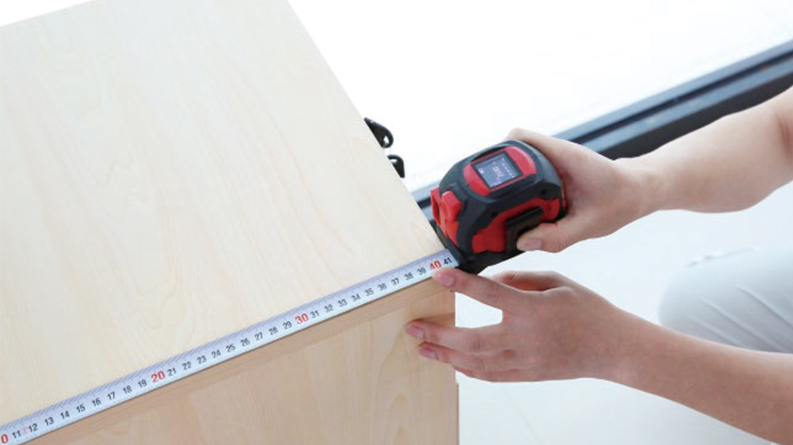

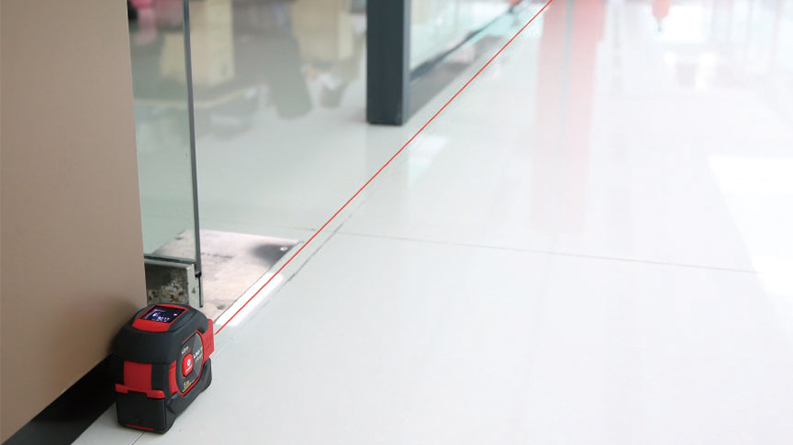

Applications of LM T Series Laser Tapes

Documents

LM60T | Datasheet

LM60T | User Manual
